See the finest details

Get the most information about your sample. The QuadraNT™ X-ray source and AspireFP™ detector are designed, manufactured and integrated in-house, specifically for electronics and manufacturing samples.
Finding defects is easy thanks to over 30 advanced image enhancement filters that create clear, easy to interpret images.

Simplicity as Standard

Ensure manufacturing compliance. Inbuilt automated tools for BGA quality analysis, bump diameter and roundness, wire sweep, solder and QFN voiding make quick work of finding defects, helping you achieve IPC-A-610 and IPC-7095 compliance.
Minimize operator training time with with Gensys proprietary control and measurement software. All key functions are a mouse click away

Maintenance Free

Minimize downtime. The QuadraNT X-ray tube requires no regular maintenance or filament changes.
Lifetime repeatability as standard. Since the filament is never changed, inspection imagery is clear and repeatable, today, tomorrow and year after year.
Oil free. QuadraNT uses an oil free ion pump to maintain vacuum which never requires an oil change.

Specifications

Options
High Power Upgrade	10W to 20W
X-Plane^®	View sample slides without additional CT hardware
μCT	Create high resolution 3D models with the μCT sample stage.
Heated Stage	Simulate reflow oven conditions, view solder processes in real time
Template Based Analysis	Use existing design data to create automatic inspection routines
Joysticks	For joystick navigation and zoom
Barcode Reader	Track samples easily
Second Monitor	See board overview and reference images more clearly
Filtering Tray	Reduce sample X-ray dose
Thin Sample Tray	Acquire clearer images of thin samples
Visualization for X-Plane	Create 3D models from X-Plane data

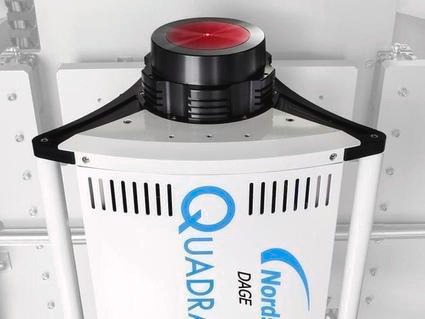

QuadraNT^™X-ray Tube
Type	Filament free transmissive
Feature Recognition	0.35 μm (0.95μm above 10W)
Max. Power	10W (optional 20W)
Voltage	30-160kV

Inspection

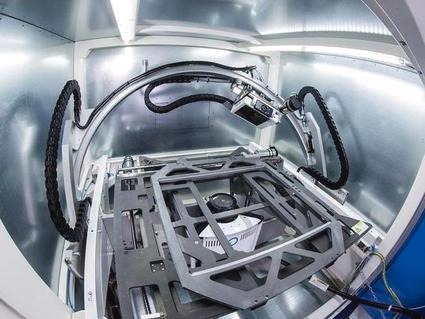

Oblique Angle view	2 x 70^° - No sample rotation required
Anti Vibration	AXiS - Active X-ray Image Stabilization
Display Resolution	94 PPI
Inspection Area	510 x 445 mm (20 x 17.5")
Geometric Magnification	2,500x
Total Magnification	45,000x
Sample Weight (standard tray)	5kg (11 lbs)
Display	Single 24" WUXGA 1920 x 1200 on Fully Flexible Arm Mount

Aspire FP^™Detector
Resolution	3 MP
Frame Rate	25 fps
Pixel Pitch	50 μm
Digital Imaging Processing	16-bit

System
Footprint	1570 W x 1500D x 1900 H mm
System Weight	1950 kg (4300 lbs)
Power Supply	Single phase 200-230 VAC, 50/60 Hz, 16A
Typical Power Consumption	1KW
Air Supply	5-8 bar clean, dry for anti-vibration
Operation Temperature	10-30^°C
Humidity	<85 % (non-condensing)
Operation	Mouse
OS	Windows 10 64-bit
X-ray Safety	<1 μSv/hr Meets all international standards

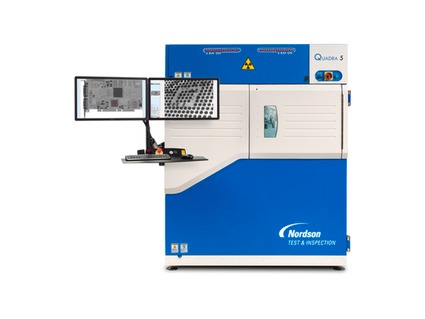

Sub Micron Level Image QuadraTM 5 offers excellent functionality for applications where sub micron level image resolution and 10W X-ray power is sufficient. Images are acquired at 3MP resolution and displayed in real time on a High Definition 24” monitor

Heated Stage X-ray Option Quadra 5 shares many of the same accessories as QuadraTM 7, including the µCT acquisition stage, heated sample stage for solder reflow simulation, X-ray dose filtering and thin sample trays.

Maintenance Free Minimize downtime. The QuadraNT X-ray tube requires no regular maintenance or filament changes. Lifetime repeatability as standard. Since the filament is never changed, inspection imagery is clear and repeatable, today, tomorrow and year after year. Oil free. QuadraNT uses an oil free ion pump to maintain vacuum which never requires an oil change.

Unbeatable Resolution The AspireTM Flat Panel detector from Nordson DAGE makes it easy to see even the smallest defects. Aspire FP combines 16 bit contrast with 6.7 megapixel resolution to produce images of unrivaled quality.
