Mô tả sản phẩm

See the finest details

No compromises. Quadra’s unique double angle geometry lets you look from every angle without a rotation table. You are not limited to rotating smaller samples only.
See the clearest images of electronics samples. Quadra 3 is the only 0.95 µm system with an image chain completely designed and manufactured in house for electronics samples.

Simplicity as Standard

The perfect walk-up inspection station. Gensys control software takes high quality images with only a few intuitive mouse clicks, operators can be up and running fast and with minimal training.
Save time with AIR automatic inspection routines. Teach Quadra once then let AIR automatically inspect for you.

Maintenance Free

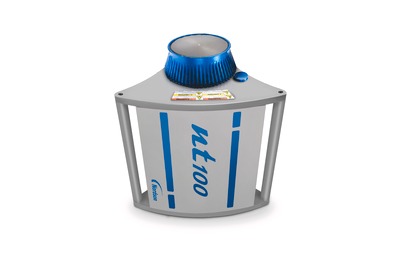

Minimize downtime. The QuadraNT X-ray tube requires no regular maintenance or filament changes.
Lifetime repeatability as standard. Since the filament is never changed, inspection imagery is clear and repeatable, today, tomorrow and year after year.
Oil free. QuadraNT uses an oil free ion pump to maintain vacuum which never requires an oil change.

Specifications

System
Footprint	1570 W x 1500 D x 1900 H mm
System Weight	1950 kg (4300 lbs)
Power Supply	Single phase 200-230 VAC, 50/60 Hz, 16A
Typical Power Consumption	1 kW
Operation Temperature	10-30°C
Humidity	< 85% (non-condensing)
Operation	Mouse
OS	Windows 10 64-bit
X-ray Safety	<1 µSv/hr Meets all international standards

Options
X-Plane®	View sample slides without additional CT hardware

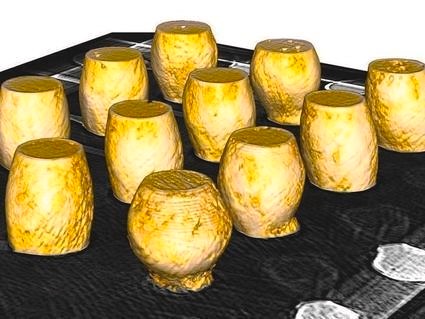

Visualization for X-Plane	Create 3D models from X-Plane data
Heated Stage	Simulate reflow oven conditions, view solder processes in real time
HDR	High Dynamic Range Imaging enables you to see defects in very bright and very dark areas of the same image
Joystick	For joystick navigation and zoom
Barcode Reader	Track samples easily
Filtering Tray	Reduce sample X-ray dose
Thin Sample Tray	Acquire clearer images of thin samples

Components
QuadraNT™X-ray Tube	Filament free transmissive
Aspire™FP Detector	1, 4 MP Res

No Compromises Easily ensure IPC compliance with automatic measurement and voiding analysis that gives clear pass/fail results. Quadra’s unique double angle geometry lets you look from every angle without a rotation table. You are not limited to rotating smaller samples only.

Inhouse Components Head in pillow and open joints (see blue circles) effortlessly identified using X-Plane. See the clearest images of electronics samples. Quadra 3 is the only 0.95 µm system with an image chain completely designed and manufactured in house for electronics samples.

Maintenance Free Minimize downtime. The QuadraNT X-ray tube requires no regular maintenance or filament changes. Lifetime repeatability as standard. Since the filament is never changed, inspection imagery is clear and repeatable, today, tomorrow and year after year. Oil free. QuadraNT uses an oil free ion pump to maintain vacuum which never requires an oil change.
