Quadra 7

Danh mục:

Nordson

Từ khóa:

xray 3d sửa máy x ray công nghiệp , sửa máy x ray công nghiệp , máy kiểm tra x ray , kiểm định an toàn phóng xạ , máy x ray công nghiệp , cho thuê máy x ray , mua bán máy x ray cũ mới , máy x ray cũ mới , xray 3d , x ray 3d , xrf , xrf cũ mới , sửa máy đo xrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

At the cutting edge of X-ray inspection performance, Quadra 7 shows you features and defects as small as 0.1µm, non destructively.

Quadra 7 is the X-ray inspection and failure analysis tool of choice in a wide range of industries, including electronics packaging and wafer level manufacturing, automotive, energy and aerospace electronics inspection, and medical device and LED fabrication.

Choose Quadra 7 to see the clearest features at the highest magnification, today, and for all your products in the future.

Specifications

Options
X-Plane^®	View sample slides without additional CT hardware
Visualization for X-Plane	Create 3D models from X-plane data
μCT	Create high resolution 3D models with the µCT sample stage
Heated Stage	Simulate reflow oven conditions, view solder processes in real time
Template Based Analysis	Use existing design data to create automatic inspection routines
Joysticks	For joystick navigation and zoom
Barcode Reader	Track samples easily
Second Monitor	Reduce sample X-ray dose
Filtering Tray	Acquire clearer images of the samples
Thin Sample Tray (included)	Acquire clear images of thin samples

QuadraNT^TMX-ray Tube
Type	Filament free transmissive
Feature Recognition	0.1µm (0.3µm above 10W)
Maxi. Power	20W
Voltage	30-160kV

Aspire^TMFP Detector
Resolution	6.7 MP
Frame Rate	30 fps
Pixel Pitch	50 µm
Digital Imaging Processing	16-bit

Inspection
Oblique Angle View	2 x 70^°- No sample rotation required
Anti Vibration	AXiS- Active X-ray Image Stabilization
Display Resolution	185 PPI
Inspection Area	510 x 445 mm (20 x 17.5")
Geometric Magnification	2,500x
Total Magnification	68,000x
Display	Twin 24^° 4K UHD 3840 x 2160 on Fully Flexible Arm Mount

System
Footprint	1570 W x 1500 D x 1900 H mm
System Weight	1950 kg (4300 lbs)
Power Supply	Single phase 200-230 VAC, 50/60 Hz, 16A
Typical Power Consumption	1KW
Air Supply	5-8 bar clean, dry for anti-vibration
Operation Temperature	10-30°C
Humidity	<85 % (non-condensing)
Operation	Mouse
Operating System	Windows 10 64-bit
X-ray Safety	<1 µSv/hr Meets all international standards

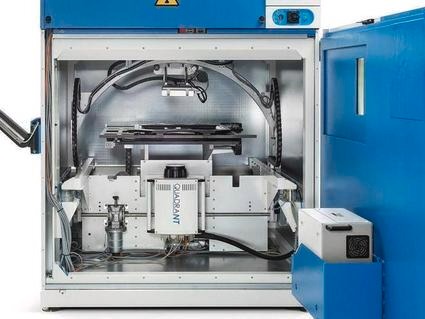

Turn Images into Solutions QuadraTM creates unbeatable images, making it easy to see even the tiniest detail and find defects quickly. The in-house designed high performance X-ray tube and detector allows feature recognition down to 100nm and magnification up to 68,000 times.

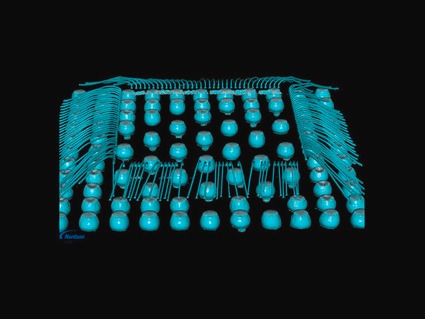

Bring out the finest details Over 30 advanced filters bring out the sharpest images and show the finest details, allowing you to find features and defects faster. HDR Imaging increases the dynamic range so defects in both dark and light areas can be seen clearly on one image.

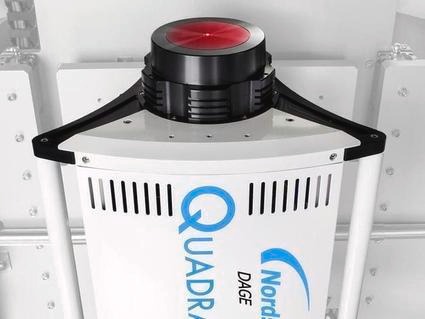

Unique patented technology QuadraNT™, Nordson's latest generation X-ray source is 10 times brighter and intrinsically more stable than conventional X-ray tubes. It utilises a LaB6 emitter instead of a traditional tungsten filament, and an ion pump to maintain a higher quality vacuum. QuadraNT opens up a world of stable, high resolution images at all power levels.

Seeing is believing QuadraTM series X-ray inspection takes you beyond optical imaging, allowing you to non-destructively inspect obscured areas inside devices and components at up to 68,000 times magnification. Understand your sample in 3D at high times magnification utilizing the µCT sample stage with computed tomography (CT). Watch solder reflow in real time with the heated stage accessory.
