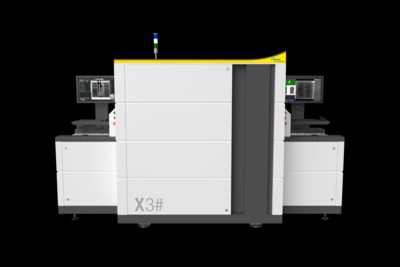

The X#-platform series is an inline automated X-ray system which covers a wide range of AXI applications. It is a ﬂexible platform with very versatile ﬁelds of use depending on the application requirements. The inspectable applications range from component level inspection for wire bonds, large SMT boards, high-power electronic modules up to fully assembled modules.

Specifications

System
Footprint	1755 mm (H) x 3100 mm (W) x 1760 mm (D)
System Weight	2,800 kg
Power Consumption	max.6 kW
Line Voltage	400 VAC, 50/60 Hz 3 phase, 16 A/ 208 VAC, 50/60 Hz 3 phase, 25 A/
Air Supply	5-7 Bar, < 21/min, filtered (30μ), dry, oil free
Operation Temperature	15^°- 28 ^°C optimal 20^°-25^°C
Adjustable conveyor height (SMEMA)	890 - 980 mm

Inspection speed
Transmission (X2#, X2.5#, X3#)	up to 3-4 views /s
Off-Axis (X2.5#, X3#)	up to 2-3 views /s
3D Planar CT (X3#)	up to 3 s / FoV

Options
Barcodereader
Low-dose radiation filter
Auto BCR scanning station (x-y gantry)

X-ray System Features Flexible AXI system for inline and island of automation conﬁgurations Microfocus X-ray tube (sealed tube / maintenance free) Multiple programmable motion system with servo drives Digital CMOS flatpanel detector Automatic grey-level and geometrical calibration Barcode scanner for serial number and product type selection Full product traceability via customized MES-Interface

Highlights Flexible setup for inline pass through or same-side in/out configuration Combination with line scan camera for high throughput Auto BCR scanning station (x-y gantry) Low-dose radiation filter

Depending on the type of product & inspection task X2# Transmission (2D) + SFT™ X2.5# Transmission (2D) + SFT™ + Off-Axis (2.5D) X3# Transmission (2D) + SFT™ + Off-Axis (2.5D) + 3D SART
