Mô tả sản phẩm

The XT-series provides the advanced inspection capability of Nordson TEST & INSPECTION's inline system in a smaller footprint manual load/island of automation system. The platforms are designed for ﬂexibility and ease of use for a wide variety of products requiring 2D and 2.5D automated X-ray inspection. The XT-6/XT-6A platform is a highly ﬂexible automated X-ray inspection system with minimum footprint and a parallel-kinematic Hexaglide manipulation unit for extreme-angle off-axis image acquisition with high resolution. It is suitable for high-quality X-ray analysis of electronic assemblies and material analysis of parts that require ﬂexible part manipulation with multiple inspection angles. For batch modes and volume inspection the XT-6 can be equipped with a single-sided conveyor setup and magazine load/unload station (XT-6A).

Specifications

Facilities
Dimensions:	1940 mm (H) x 2250 mm (W) x 1610 (D
Weight:	2,000 kg
Safe Operating Temperature:	15^°-28^°C optimal 20^°-25^°C
Power Consumption:	Max.6k W
Line Voltage:	220 VAC, single phase, 16A
Air:	5-7 Bar, < 21/min, filtered (30μ), dry, oil free


X-ray Source (sealed tube)
Energy:	SMT-Setup 120 kV / 40 W
Grey resolution:	up to 14 Bit
Detector Types:
CMOS Flatpanel Detector	50 μm pixel size ( 5 MPix) 75 μm pixel size ( 3 MPix)


Parallel-kinematic Hexaglide unit with 6 axes
x,y (linear drives)	sample table
Position repeatability	+/- 5 mm
X-ray tube (sealed):	Z-drive
Handling
XT-6A	single lane, in-out same side[

Inspection features
Max. sample size	400 mm to 350 mm
Max. inspection area	400 mm to 350 mm
Min. sample size	100 mm to 50 mm
Sample thickness	0,8 - 10 mm
Max. sample weight:	5 kg
Angle shot capability:	0 - 65 dgr
Resolution	down to 3 μm / pix

Assembly clearance
Topside (incl. board thickness):	160 mm
Bottom side (excl. board thickness)	35 mm
Min. edge clearance for clamping:	3 mm

Inspection speed
Transmission	up to 2 images /s
Off-Axis	up to 2 images /s

Options
Barcodereader
Heavy duty transport system

X-ray System Features Flexible AXI system for manual load and island of automation conﬁgurations Microfocus X-ray tube (sealed tube / maintenance free) Extreme angle shot capability (up to 65 deg) Multiple programmable motion system with servo drives Digital CMOS flatpanel detector Automatic grey-level and geometrical calibration Barcode scanner for serial number and product type selection Full product traceability via customized MES-Interface Automatic grey-level and geometrical calibration Full product traceability via customized MES-Interface

Highlights Barcodereader Heavy duty transport system Low dose radiation filter Hybrid or chip level assembly setup

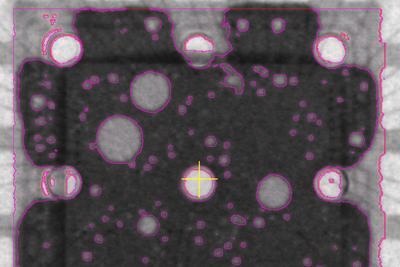

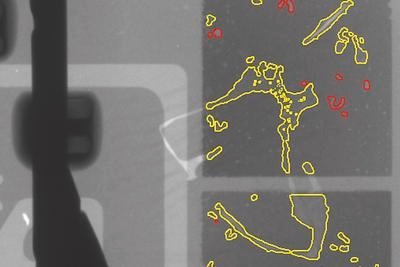

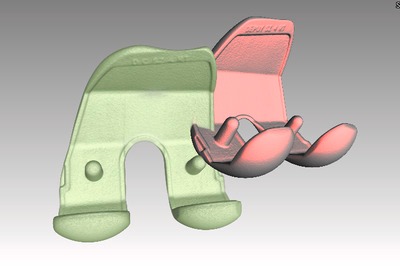

Depending on the type of product & inspection task SMT setup for component and solder-joint inspection on PCB XT-6(A) Transmission (2D) + SFT™ + Off-Axis (2.5D)
