Mô tả sản phẩm
|

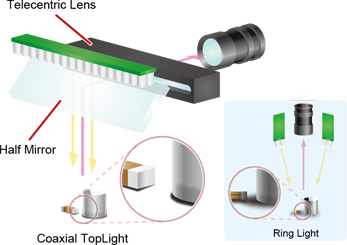

High-speed vibration-free line scan technology Optical system includes a telecentric lens capturing images with no blind spots Coaxial overhead lighting eliminates shadowing, improves capability and reduces production start-up time
|
 |
Line scan system detects FOD and extra components across the entire surface of the PCB
Unique Fujiyama algorithm verifies five critical aspects of through-hole solder joints
Conformal coating UV light inspection
Benchtop Inspection System Product Line
Compact machine design
Machine width is the same for both single-lane and dual-lane
| Model | BF-Frontier II |
|---|---|
 |
|
| Dimensions (W) x (D) x (H) [Main body]mm (in.) |
850 x 1340 x 1230 (33.5 x 52.8 x 48.4) |
| Weight | Approx. 450 Kg (992.1 lbs) |
| Electric Power Requirement | Single-phase ~ 100-120/200-240V +/-10％, 50/60Hz |
| Resolution | 18μm |
| Air Requirement | 0.5MPa, 5L/min (ANR) |
| Target PCB Size mm (in.) |
50 W x 60 L - 460 W x 500 L (2 W x 2.4 L - 18 W x 20 L) |
| PCB Clearance | Top: 40mm (1.57 in.) Bottom: 40mm (1.57 in.) |
