Mô tả sản phẩm

Hardware that provides both high-speed, and high reliability

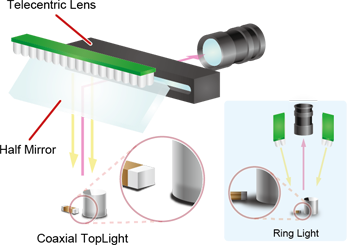

High-speed vibration-free line scan technology
Optical system includes a telecentric lens capturing images with no blind spots
Coaxial overhead lighting eliminates shadowing, improves capability and reduces production start-up time

Advanced Software Features

Line scan system detects FOD and extra components across the entire surface of the PCB
Unique Fujiyama algorithm verifies five critical aspects of through-hole solder joints
Conformal coating UV light inspection

Improved floorspace productivity

Benchtop Inspection System Product Line
Compact machine design
Machine width is the same for both single-lane and dual-lane

Specifications

Model	BF-Tristar II
Model
Dimensions (W) x (D) x (H) [Main body]mm (in.)	850 x 1295 x 1130 (33.5 x 51 x 45.5)
Weight	Approx. 450 Kg (992.1 lbs)
Electric Power Requirement	Single-phase ~ 100-120/200-240V +/-10％, 50/60Hz
Resolution	10μm
Air Requirement	0.5MPa, 5L/min (ANR)
Target PCB Size mm (in.)	50 W x 60 L - 250 W x 330 L (2 W x 2.4 L - 10 W x 13 L)
PCB Clearance	Top: 30mm (1.18 in.) Bottom: 30mm (1.18 in.)
