Hardware that provides high-speed and high-accuracy inspection

Rigid gantry structure and exclusive dual motor drive system
High resolution linear scale provides high accuracy positioning
CoaXPress camera delivers faster inspection and measurement processes

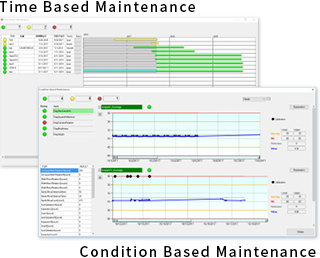

Automatic Self-diagnostic functionality monitors machine performance

Hardware : Flexible Configurations meet a broad range of applications

Multiple inspection resolutions of 7μm, 12μm, and 18μm
Multiple machines sizes include medium, large and extra large,
and dual lane
Side Cameras

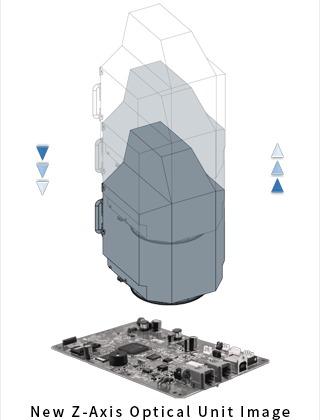

Saki’s innovative Z-axis optical-head control feature is now available
with 3Di Series inline AOI systems

Select from a variety of options including machine size,
inspection resolution, hardware and software features
to meet your specific requirements

Advanced Software Features

Saki Self-Programming Software (SSP)
Inspection compliance with IPC 610 Standards
Extra Component Detection identifies foreign material
"Fujiyama"Through-hole Device Solder Inspection
Job Data Convert Function automatically converts Pick-and-Place machine data to inspection machine data. This function greatly reduces the time required to create inspection data. ※1 ※2

※1 Get in touch to ask about details of the machines on which it is available.
※2 Optional function.

PCB Size mm (in.)	-	Single mode	-	Single mode	-
Dimensions	M Single Lane	M Dual Lane	L Single Lane	L Dual Lane	XL Single Lane
Model	3Di-MS2	3Di-MD2	3Di-LS2	3Di-LD2	3Di-ZS2
Model
Size (W) x (D) x (H) [Main body]mm (in.)	850 x 1430 x 1500 (33.46 x 56.30 x 59.06)		1040 x 1440 x 1500 (40.94 x 56.69 x 59.06)		1340 x 1440 x 1500 (52.75 x 56.69 x 59.06)
Weight	Approx. 850 Kg, 1873.93 lbs		Approx. 900 Kg, 1984.16 lbs
Electric Power Requirement	Single-phase ~ 200-240V +/-10％, 50/60Hz
Resolution	7μm, 12μm, 18μm				18μm
Air Requirement	0.5MPa, 5L/min (ANR)
	50 W x 60 L - 330 W x 330 L (1.97 Wx 2.36 L - 12.99 W x 12.99 L)	50 W x 60 L - 330 W x 330 L (1.97 W x 2.36L - 12.99 W x 12.99 L)	7µm camera head 50 W x 60 L - 330 W x 330 L (1.97 W x 2.36 L - 12.99 W x 12.99 L)	7µm camera head 50 W x 60 L - 330 W x 330 L (1.97 W x 2.36 L - 12.99 W x 12.99 L) 12/18 µm camera head 50 W x 60 L - 500 W x 510 L (1.97 W x 2.36 L - 19.68 W x 20.07 L)	50 W x 60 L - 686 W x 870 L (1.97 W x 2.36 L - 27.00 W x 34.25 L)
		Dual mode	-	Dual mode
		50 W x 60 L - 320 W x 330 L (1.97 W x 2.36L - 12.60 W x 12.99 L)	12/18 µm camera head 50 W x 60 L - 500 W x 510 L (1.97 W x 2.36 L - 19.68 W x 20.07 L)	7µm camera head 50 W x 60 L - 320 W x 330 L (1.97 W x 2.36 L - 12.60 W x 12.99 L) 12/18 µm camera head 50 W x 60 L - 320 W x 510 L (1.97 W x 2.36 L - 12.60 W x 20.07 L)
PCB Clearance	Top: 40mm, 1.57 in. Bottom: 60mm, 2.36 in.	Top: 40mm, 1.57 in. Bottom: 50mm, 1.96 in.	Top: 40mm, 1.57 in. Bottom: 60mm, 2.36 in.	Top: 40mm, 1.57 in. Bottom: 50mm, 1.96 in.	Top: 40mm, 1.57 in. Bottom: 60mm, 2.36 in.
