High-resolution camera system for high-density boards and extremely small components

The newly developed high-resolution camera system ensures a sharply focused image and provides enhanced inspection resolution for tiny components such 0402mm or 0201mm SMD chips, fine-pitch ICs and closely located pads.

Delivering both high resolution and increased height-measurement capability

Despite its high resolution, the height-measurement range extends up to 25mm, enabling 3D inspection of all types of SMT-mounted parts including extremely small and tall components.

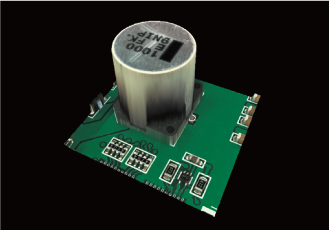

Tall component in SMT process

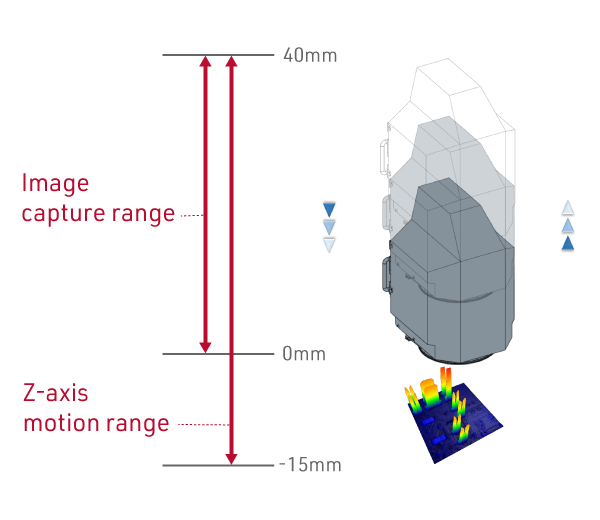

Combined with the Z-axis option, the height measurement range can be expanded up to 40mm.

Z-axis Option

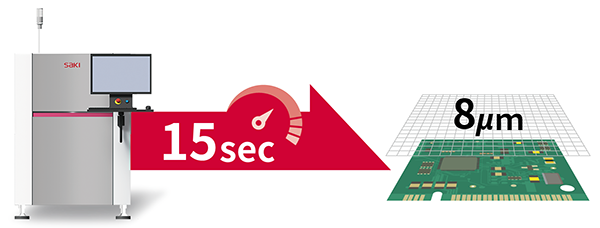

Achieves the industry's fastest cycle time for AOI with 8μm camera resolution

Saki's team of optical-inspection experts handles all software development in-house. This ensures optimal interactions and coordination with the various hardware subsystems, achieving the industry's fastest cycle time. Image capture, processing and inspection algorithms are executed in parallel, minimizing waiting times.

*Total time of capturing and inspection with Saki's sample board in A5 size (150mm x 214mm).

*The inspection time may vary depending on the inspection condition.

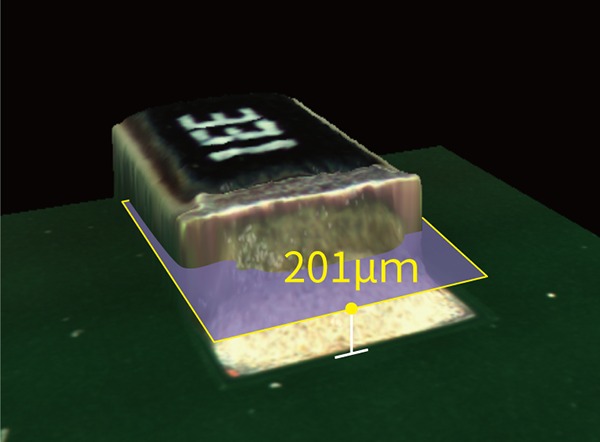

High-resolution 3D Soldering inspection

Saki's unique soldering inspection algorithm improves pass/fail inspection accuracy by assessing both soldering fillet shape and wetting height.

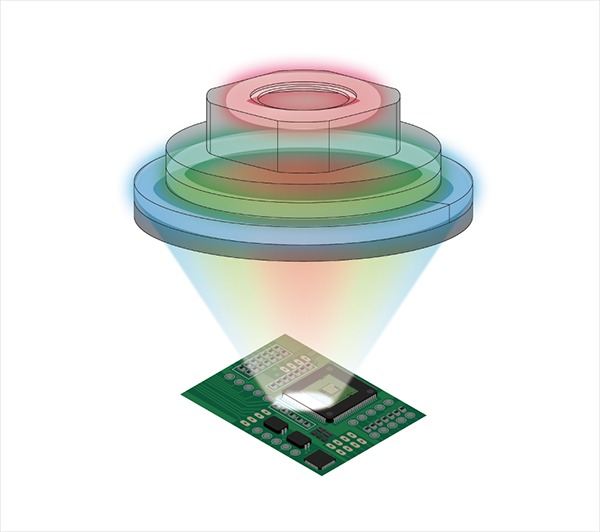

High-resolution images from the new camera system and enhanced color visibility of solder surface thanks to the advanced dome lighting* greatly enhance support for operator judgement.

Customization of the features and great flexibility

Saki's new 3D AOI series delivers greater flexibility with the option to upgrade the camera system and customize the optical resolution and lighting according to specific production needs or the manufacturing environment. Customers can apply both hardware and software upgrades themselves to improve machine inspection capabilities, with minimal expertise needed and without significant downtime.

PCB Size mm (in.)	-	Single mode	-	Single mode	-
Dimensions	M Single Lane	M Dual Lane	L Single Lane	L Dual Lane	XL Single Lane
Model	3Di-MS3	3Di-MD3	3Di-LS3	3Di-LD3	3Di-ZS3
Model
Size (W) x (D) x (H) [Main body]mm (in.)	850×1430×1500 (33.46 x 56.30 x 59.06)		1040×1440×1500 (40.94 x 56.69 x 59.06)		1340×1440×1500 (52.75 x 56.69 x 59.06)
Weight	Approx. 850 Kg, 1873.93 lbs		Approx. 900 Kg, 1984.16 lbs
Electric Power Requirement	Single-phase ~ 200-240V+/-10%, 50/60Hz
Resolution	8μm
Air Requirement	0.5MPa, 5L/min（ANR）
	50 W x 60 L - 330 W x 330 L (1.97 W x 2.36L - 12.99 W x 12.99 L)	50 W x 60 L - 330 W x 330 L (1.97 W x 2.36L - 12.99 W x 12.99 L)	50 W x 60 L - 500 W x 510 L (1.97 W x 2.36 L - 19.68 W x 20.07 L)	50 W x 60 L - 500 W x 510 L (1.97 W x 2.36 L - 19.68 W x 20.07 L)	50 W x 60 L - 686 W x 870 L (1.97 W x 2.36 L - 27.00 W x 34.25 L)
		Dual mode		Dual mode
		50 W x 60 L - 320 W x 330 L (1.97 W x 2.36L - 12.60 W x 12.99 L)		50 W x 60 L - 320 W x 510 L (1.97 W x 2.36 L - 12.60 W x 20.07 L)
PCB Clearance	Top: 40mm, 1.57 in. Bottom: 60mm, 2.36 in.	Top: 40mm, 1.57 in. Bottom: 50mm, 1.96 in.	Top: 40mm, 1.57 in. Bottom: 60mm, 2.36 in.	Top: 40mm, 1.57 in. Bottom: 50mm, 1.96 in.	Top: 40mm, 1.57 in. Bottom: 60mm, 2.36 in.
