Mô tả sản phẩm

Hardware providing high-speed and high-accurate inspection

Shares the same rigid gantry structure with Saki's 3Di-AOI
Rigid gantry structure and exclusive dual Y axis motor drive system
High resolution linear scale for accurate positioning
CoaXPress camera delivers higher speed and higher accuracy measurement

Automatic Self-diagnostic functionality monitors machine performance

Hardware : Flexible Configurations for Wide Ranging Applications

Simultaneous 2D and 3D inspection of the entire PCB surface
Three sensors are available with 7μm, 12μm, and 18μm resolution
Three machine sizes available including dual lane to support varying applications

Select from a variety of options including machine size, inspection resolution, hardware and software features to meet your specific requirements

Advanced Software Features

Warpage management
Coplanarity inspection

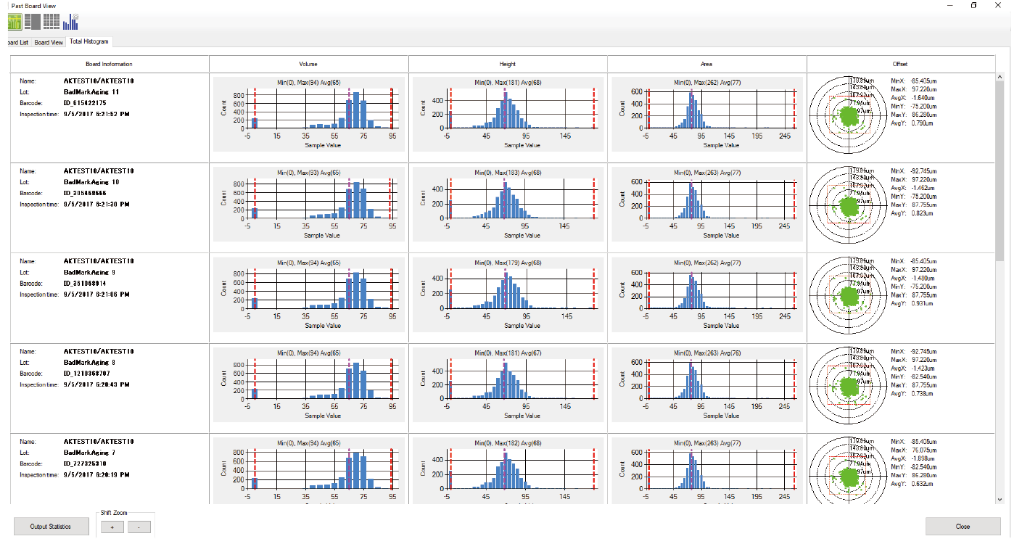

SPC Function

PCB Size mm (in.)	-	Single mode	-	Single mode	-
Dimensions	M Single Lane	M Dual Lane	L Single Lane	L Dual Lane	XL Single Lane
Model	3Si-MS2	3Si-MD2	3Si-LS2	3Si-LD2	3Si-ZS2
Model
Size (W) x (D) x (H) [Main body]mm (in.)	850 x 1430 x 1500 (33.46 x 56.30 x 59.06)		1040 x 1440 x 1500 (40.94 x 56.69 x 59.06)		1340 x 1440 x 1500 (52.75 x 56.69 x 59.06)
Weight	Approx. 850 Kg, 1873.93 lbs		Approx. 900 Kg, 1984.16 lbs
Electric Power Requirement	Single-phase ~ 200-240V +/-10％, 50/60Hz
Resolution	7μm, 12μm, 18μm				18μm
Air Requirement	0.5MPa, 5L/min (ANR)
	50 W x 60 L - 330 W x 330 L (1.97 Wx 2.36 L - 12.99 W x 12.99 L)	50 W x 60 L - 330 W x 330 L ( 1.97 W x 2.36L - 12.99 W x 12.99 L)	7µm camera head 50 W x 60 L - 330 W x 330 L (1.97 W x 2.36 L - 12.99 W x 12.99 L)	7µm camera head 50 W x 60 L - 330 W x 330 L (1.97 W x 2.36 L - 12.99 W x 12.99 L) 12/18 µm camera head 50 W x 60 L - 500 W x 510 L (1.97 W x 2.36 L - 19.68 W x 20.07 L)	50 W x 60 L - 686 W x 870 L (1.97 W x 2.36 L - 27.00 W x 34.25 L)
		Dual mode	-	Dual mode
		50 W x 60 L - 320 W x 330 L ( 1.97 W x 2.36L - 12.60 W x 12.99 L)	12/18 µm camera head 50 W x 60 L - 500 W x 510 L (1.97 W x 2.36L - 19.68 W x 20.07 L)	7µm camera head 50 W x 60 L - 320 W x 330 L (1.97 W x 2.36 L - 12.60 W x 12.99 L) 12/18 µm camera head 50 W x 60 L - 320 W x 510 L (1.97 W x 2.36 L - 12.60 W x 20.07 L)
PCB Clearance	Top: 40mm, 1.57 in. Bottom: 60mm, 2.36 in.	Top: 40mm, 1.57 in. Bottom: 50mm, 1.96 in.	Top: 40mm, 1.57 in. Bottom: 60mm, 2.36 in.	Top: 40mm, 1.57 in. Bottom: 50mm, 1.96 in.	Top: 40mm, 1.57 in. Bottom: 60mm, 2.36 in.
