Unicomp AX8200MAX 5um microfocus X-Ray machine for EMS Automotive PCBA BGA QFN CSP soldering defects Inspection

Danh mục:

Unicomp

Từ khóa:

xray 3d sửa máy x ray công nghiệp , sửa máy x ray công nghiệp , máy kiểm tra x ray , kiểm định an toàn phóng xạ , máy x ray công nghiệp , cho thuê máy x ray , mua bán máy x ray cũ mới , máy x ray cũ mới , xray 3d , x ray 3d , xrf , xrf cũ mới , sửa máy đo xrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	Unicomp
Certification:	CE, FDA
Model Number:	AX8200MAX

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 work days
Payment Terms:	T/T, L/C
Supply Ability:	300 pcs per month

Detailed Product Description

Tube Voltage:	0~90kV (Adjustable)	Tube Type:	Sealed
Focus Spot Size:	5μm	Detector:	Flat Panel Detector (FPD)
Packing Weight:	1500 Kg	Power Supply:	AC 110~220V, 50/60Hz
High Light:	vehicle x ray machine vehicle x ray scanner

Unicomp AX8200MAX 5um microfocus X-Ray machine for EMS Automotive PCBA BGA QFN CSP soldering defects Inspection

Specification Of Unicomp AX8200MAX

System Summary

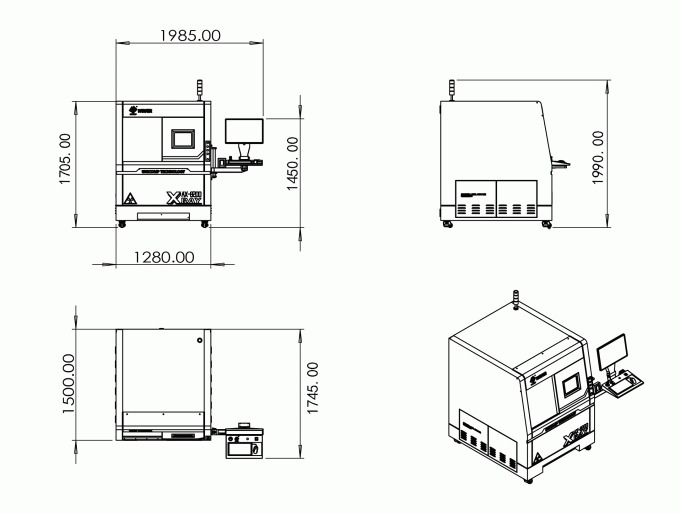

Footprint	1280(W)×1500(D)×1705(H)mm
Machine Weight	1400 kg
Power Supply	AC 110~220V, 50/60Hz
Plywood Packing Size	175(W)×155(D)×200(H)cm
Packing Weight	1500 kg
Power Consumption	1.0 kW
X-Ray Tube
Tube Type	Sealed
Max. Power	8W
Voltage	0~90kV (Adjustable)
Focus Spot Size	5μm
Imaging System
Detector	Flat Panel Detector (FPD)
Pixel Size	85μm
Effective Detection Area	130*130mm
Frame Rates	20fps
Pixel Matrix	1536*1536
System Magnification	600X
Software
Auto-measuring	BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools	Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
CNC Mode	CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display	Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation	Convenient Target Point Positioning System
Motion Control System
Movement Control	Joystick, Keypad, Mouse &Touch Panel
Max. Loading Area/Weight	610*610mm / 10kg
Max. Inspection Area	550*550mm
Oblique Views	Max. 60°
Manipulator	6-axis with X / Y / Z1 / Z2 / T1 / T2
Industrial PC
Monitor	24’’ FHD Interactive Touch LCD Display
System OS	Windows 10 64bit
Hard disk	1TB
RAM	8GB
CPU model	Intel i7 Processor
Other Features
Door Open	Electric Sliding
X-Ray Safety	<1μSv/h (Meets All International Standards)
Authority Management	Fingerprint Access Magnagement System, and Support Password Accessing.
Safety Operation	Electromagnetic Interlock, Warning Light and Real-time Radioation Leakage Monitor
* Specifications are subject to change without notice, All trademarks are the property of the system maker.

Application Fields of Unicomp AX8200MAX

Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables,Aerospace Components, Photovoltaic Industry, etc.

Function & Features of Unicomp AX8200MAX

1. Large Size Inspection Table Laser Locator for Precise Location

2. 24’’ FHD Interactive Touch LCD Display

3. Accurate Control, CNC Programming Automatic Positioning

4. FPD 60° Tilting Inspection

5. Fingerprint Access Management System

6. Real-time Monitoring of Radiation

Inspection Images of Unicomp AX8200MAX
