Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	AX9100

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	300 sets per month

Detailed Product Description

Name:	PCB X Ray Machine	Tube Voltage:	130KV
Size:	1350(L)x1250(W)x1700(H)mm	Warranty:	1 Year
Weight:	1900kg	Power Consumption:	1.6kW
High Light:	pcb x ray inspection pcb inspection equipment

PCB X Ray Machine high quality PCB inspection system Micro BGA on chop analysis

Our unicomp X-Ray Inspection System is a full featured high-performance x-ray inspection system with an unbeatable price to performance ratio and includes all of the advanced features you would expect to find on a much more expensive x-ray inspection system.

X-ray inspection system has been widely applied to Circuit Board Inspection,Semi-Conductor Inspection and Other Applications. (Offline X - Ray series) widely used in offline detection, defect analysis, used for PCBA, packaging, ceramics, plastics, LED, and so on.

Major applications:

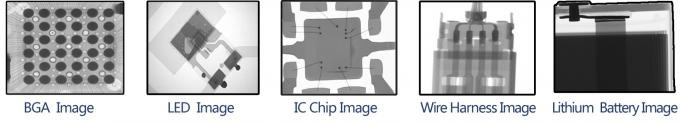

PCBA BGA/IC LED Aliminum die casting Battery connector inspecting

1. Semiconductor package

2. Electronic connector module.

3. Original Package

4. Aerospace components

5. Medical appliances

6. Automation components

Item	Definition	Specs
System Parameters	Size	1350(L)x1250(W)x1700(H)mm
	Weight	1900kg
	Power	220AC/50Hz
	Power Consumption	1.6kW
X-ray Tube	Type	Closed
	Max.Voltage	130kV
	Max.Power	40W
	Spot Size	7μm
X-ray System	Intensifier	FPD
	Monitor	22 ‘’LCD
	System Magnification	1600 X
Detection Region	Max.Loading Size	Φ570mm
Detection Region	Max.Inspection Area	450mm x 450mm
X-ray Leakage		<1μSv/h
