Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE
Model Number:	UNC130

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	10 sets per month

Detailed Product Description

Name:	X-ray Inspection Machine	Application:	Aluminum Casting, Iron Casting, Auto Parts, Wheels, Metal Products, Refractory Materials
Tube Voltage:	130KV	Weight:	2T
Power Consumption:	5kW	Max. Penetration:	50mm
High Light:	x ray inspection equipment x ray inspection system Aluminum NDT X ray Detection Machine

Aluminum NDT X ray Detection Machine Aerospace Automotive Parts UNC130

Features:
● 130kV,20μm X-ray tube, FPD;
● Multi-function workstation with 360°"ARC" motion and shift;
● C-arm fixture design enabling five-axis motion detection(Auto lift and descend);
● User friendly software design for easy interfacing can facilitate,customized software;
● Max. detection area Φ300*500mm.

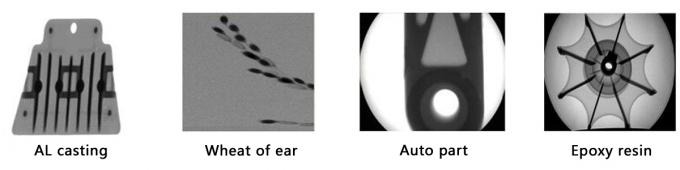

Applications:
● Precise casting parts and parts for Automobile
● Crop,Ceramics and Metal parts
● Rubber and Electronic components

System Parameters	Dimensions	1602mm1296mm2148mm(LWH)
	Equipment weight	2T
	Power	5KW
	Maximum penetration(AL)	50mm
	Detection range	Φ300*400mm
	Load weight	30kg
	Work environment	5-40° ≤80%HR
	Install power	AC220V±5% 50HZ
	X-ray leakage dose rate	≤1uSv/h
X-ray Generator	Tube voltage	130kV
	Power	65W
	Focal size	5μm
Detector	Image area	115mm*65mm
	Pixel matrix	1536mm*864mm
	Pixel size	75μm
	Frame rate	60fps
Software Functions	Image processing	Brightness and contrast adjustment; stacking frames; window width and window position adjustment; image enhancement, filter, sharpening, invert, relief and bubble measure; move, zoom in, zoom out; display image scaling; display of the mouse pointer image coordinate and the gray value
	Image measurement	Distance, radius, polygon, angle measurement; arrows and text labels; save the processed image;
	Motion control	Speed adjustment of each moving axis; CNC programming; manual operation
Additional Function	High resolution, subtle defect recognition ability to upgrade with the imported 5um micro focus source
	Save the detection time of the bulk of the work piece via the CNC programmable control
	No dead angle detection with C-arm five-axis motion detection mechanism
	Servo stepper motor drive to make the operation stability
	Voltage regulator, isolation, filtering, grounding and other protective functions are complete
	Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis function (optional)
