Precision µB3600

Benchtop with High Magnification

The μB3600 offers ultimate image resolution and performance with the industry's high level of magnification based on Matsusada's superior mechanical engineering design.

There is no need to install a large and stationary-type X-ray inspection system for high magnification observations. With its compact design, the precision μB3600 X-ray inspection system provides high performance and magnification equivalent to ones of an existing stationary type system. It comes with the advanced high voltage power supply and the X-ray tube developed by Matsusada Precision who is the Japan's leading provider of high voltage power supply devices.

Equipment size W: 455 mm x D: 625 mm x H: 630 mm

Compact and Powerful

The X-ray tube developed by Matsusada enables you to obtain a high-quality vision of x-ray output.

It used to be a large and high power-vision system required for objects containing metals that are difficult to vision, even small, palm-sized objects. The precision μB3600 desktop employs a dedicated high voltage power supply and a proprietary X-ray tube to offer high power of 90 kV. There is no longer such huge, space-consuming equipment.

Top Class Image Resolution

We upgraded the precision μB3600 X-ray inspection system with advanced features of the high-resolution 1.5-mega pixel camera, the latest image processing technology, and the proprietary X-ray tube to provide unprecedented image quality.

With a combination of the high-resolution camera (14-bit), X-ray tube developed by Mastusada, and the latest image processing function s-HDR, the precision μb3600 enables you to obtain high-quality images with a wide dynamic range. This allows for inspection and fault analysis improvement.

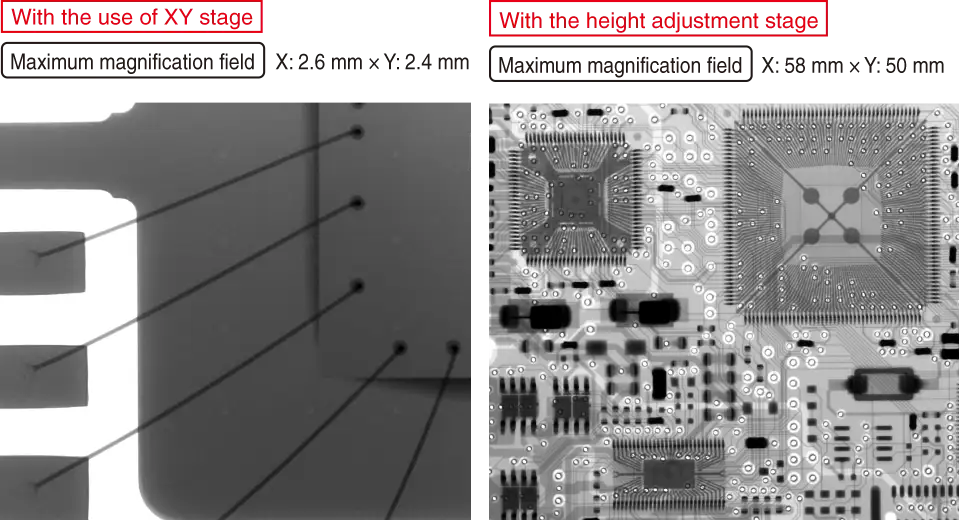

Large Field of View Available

Expanded field of view (X: 58 mm and Y: 50 mm) can be supported with the height adjustment stage (sold separately).

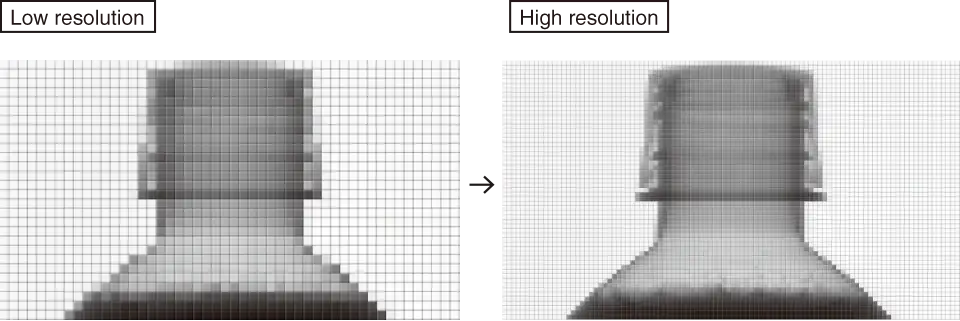

High resolution detector

Equipped with a 1.5-mega pixel detector, the precision μB3600 enables you to achieve clear images with high resolution.

New s-HDR image processing with high dynamic range of radiography

The radiographic images produced in s-HDR are available with the wide and dynamic ranges. The s-HDR allows for a clear display without sacrificing the tones in the white or black areas.

High-quality X-ray tube developed by Matsusada

The X-ray tube in conjunction with the advanced high-voltage power supply developed by Matsusada provide the best solution for noise suppression and high quality X-ray source. In addition, Matsusada, the high voltage power supply manufacturer, focuses on developing new technologies and successfully designing smaller sizes of high-voltage power supplies and the X-ray system.

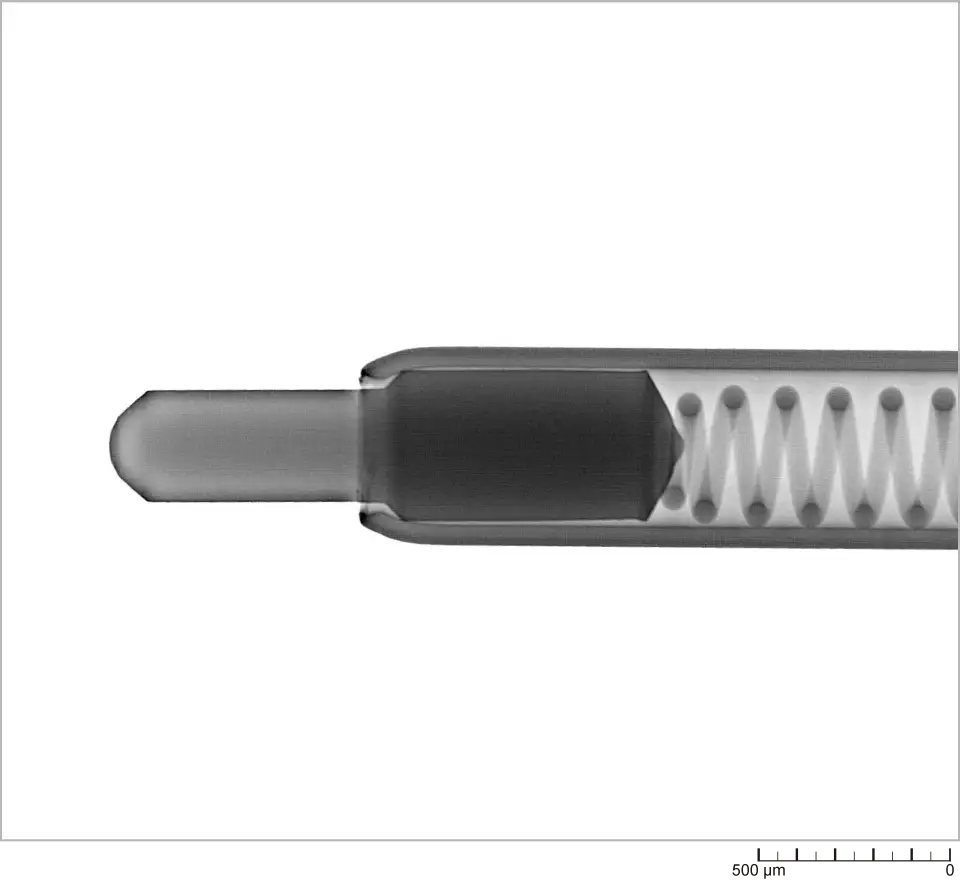

Probe pin

Wire bonding

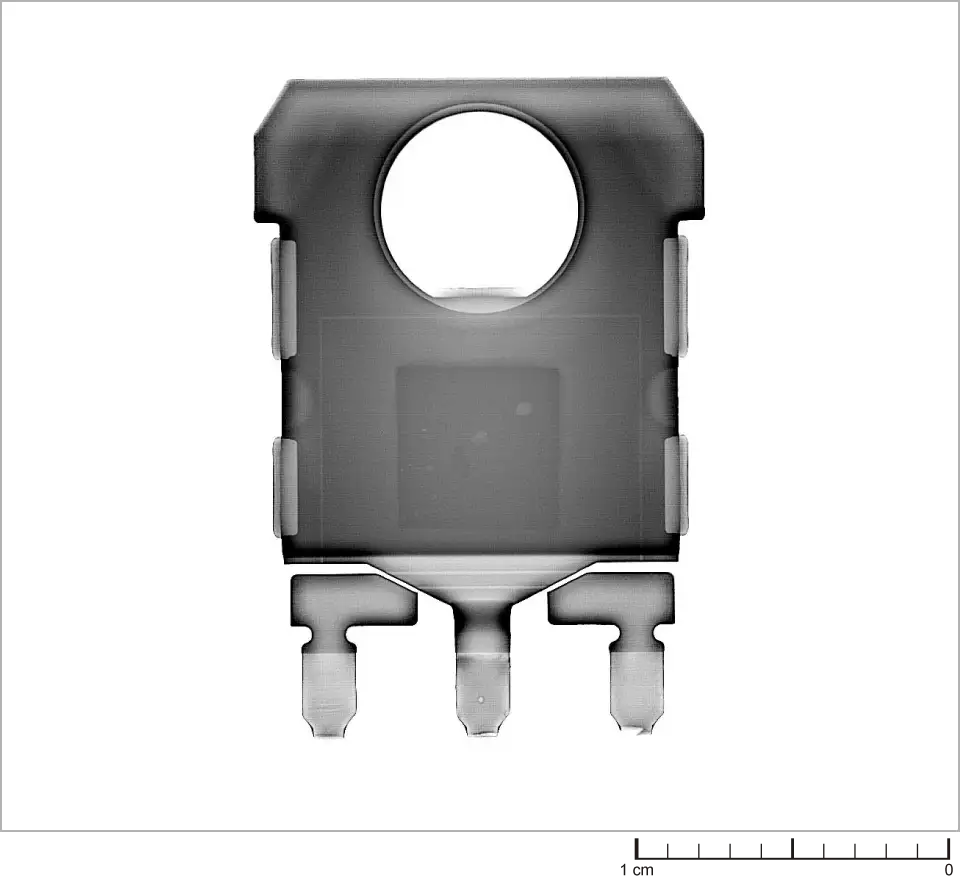

IGBT Void

Shrinkage cavity in casting
