Mô tả sản phẩm

With the stage handle, you can flexibly move the object to the desired position. And with the large front window, you can operate it as if you are touching your hand directly. The product enables easy inspection of the BGA shorts (bridges), chips, and voids by using it on Printed Circuit Board Assembly lines.

Features and Benefits

Compact benchtop design

W: 24.5 inches(620 mm) x D: 27.4 inches(695 mm) x H: 18.3 inches(465 mm)
Compact size for on-site use.

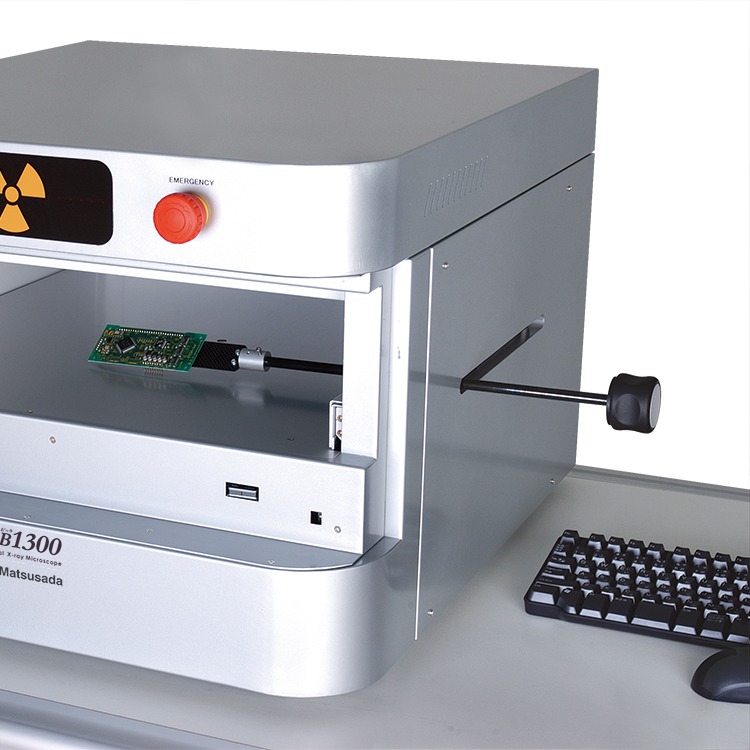

Multifunctional rotatable stage

With the rotatable stage, the sample can be rotated 360° for observation.

Two-inch X-ray camera

Equipped with a compact and high-resolution X-ray camera. Imperceptible penetrating X-rays can be viewable.

Safety

Low leakage X-ray dose

In case you forget to turn off the X-ray source, the system automatically stops X-ray radiation after a set time has elapsed. The maximum setting is 60 minutes.

Emergency stop button

This button is to be used only in an emergency. It stops X-ray radiation immediately. The maximum setting is 10 minutes.

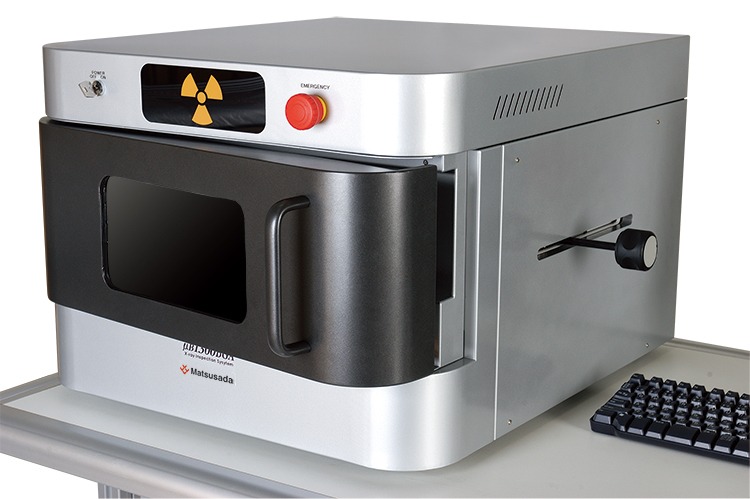

Interlock

If the door is opened during the X-ray radiation, the X-ray operation is immediately stopped.

Models

Model	Tube voltage	Stage Size	Imaging visual field size
μB1300	20 to 60 kV	10.24 x 10.24 inches	2 inches

Applications

Fields and Applications of X-ray Radiography Non-Destructive Testing

Pharmaceuticals and Cosmetics		Tablets, Capsules, Catheters, Medical pouches, Foreign object in the face mask, Cosmetics
Automobiles and Electric Vehicles		Automotive components, Wire harness, Batteries, Molded plastic parts, Motor, Insert molded parts, Aluminum die casting, Sensor, Mating parts connection
Electronics		Ball grid array (BGA), Integrated circuit (IC) chip, Connectors, Capacitors, LED, Relays, Printed circuit board (PCB), AC adapter, Light bulbs filament, Electrical cable disconnects, Discharge traces of dielectric breakdown
Advanced Materials		Carbon-Fiber-Reinforced Polymers (CFRP), Insulation material, Carbon, Dissimilar material joint, Contamination in beryllium
Precision Conponents		Probe, Bearing, Mating of plastic parts, Spring position
Creatures and Plants		Laboratory rats, Seeds, Flowers, Shell, Bone, Insects, Rice
Others		Microscopic foreign matter contamination, Voids in welding, Plastic bottle, Sealing of cans
