Features

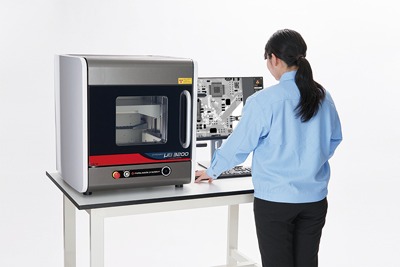

Suitable for Small Parts

"precision μB 3200" is a benchtop entry-level X-ray inspection system. The compact X-ray inspection system fits directly on the desk to use it anywhere at small factories or offices.
And, you can adjust the geometric magnification of the sample by raising or lowering the detector position.

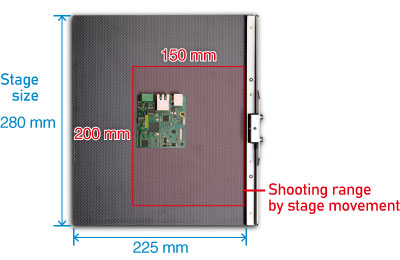

Size of Stage, Shooting Range by the Movement

The "precision μB3200" is ideal for taking images of small circuit boards and small components. For example, the maximum monitor image magnification of 125 times, the inspection area is 2.5 mm × 2.8 mm, and the applicable shooting range is 150 mm × 200 mm.

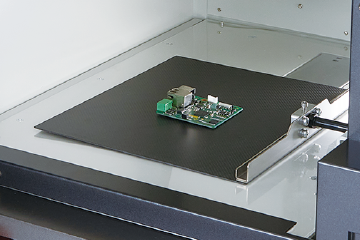

		Sample on the stage

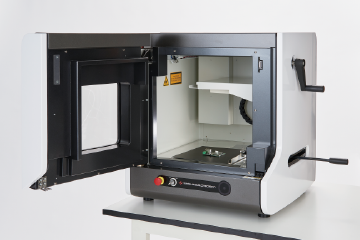

	Door open

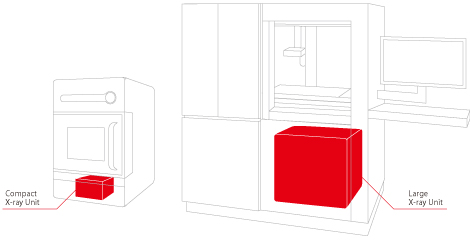

Reasons of Compact

Point

Using exquisitely created high voltage power supply
New design for longer life
Short FOD

For the Safety

The X-ray leakage measurement we offer is conducted from all directions of each unit to confirm that it is less than 1μSv/hr before delivery.
It is the extremely low level that has no impact on the usage in daily lives.

Four features that enhance safety

Interlock
Auto-off
Product status display LED
Emergency stop button

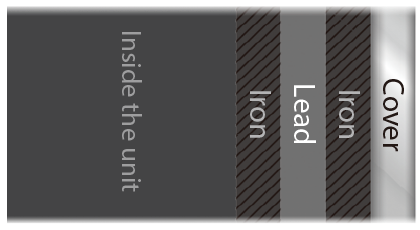

X-Ray Shielding Technology

To ensure safe and reliable installation, we have carefully designed radiation shielding.
In general, lead used for shielding is a soft and easily deformed material, but by adopting a multi-layered structure combined with steel plates, it can be used for a long time without deformation of lead.

Notification

Notifications to the public authorities (government offices, municipalities, etc.) in each country may be required for the installation of X-ray equipment. Please contact our sales representative if you need any necessary information.

Easy Replacement

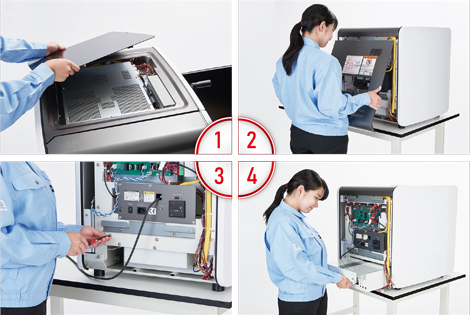

X-ray tube unit replacement steps

To replace the X-ray tube unit, remove the panels on the top and at the back side, and pull out the X-ray tube unit from the bottom part.

X-ray detector replacement

Slide off the detector attached on the top inside of the unit to replace it with new one.

Model

Model	X-ray tube			Stage
Model	Anode voltage	Anode current	Focal spot size	Perimetry field	Maximum monitor magnification
precision µB3200	30 kV to 60 kV	150 µA MAX	5 µm	2.5 mm × 2.8 mm to 4.7 mm × 5.3 mm	125 times

Functions

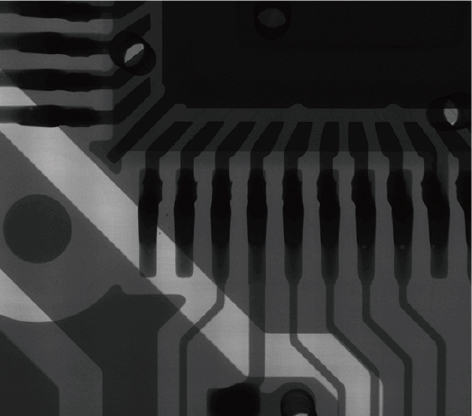

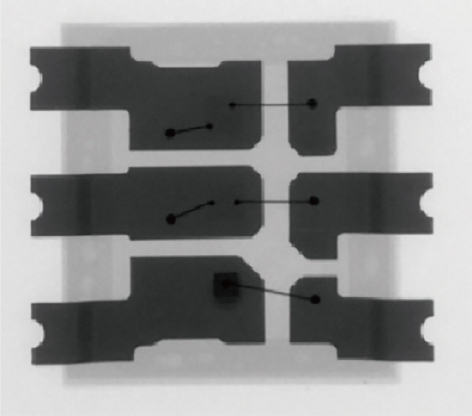

Brightness Adjustment
				The brightness of the X-ray images can be arranged by adjusting the gain value and tone curve. Also, the automatic adjustment is available.

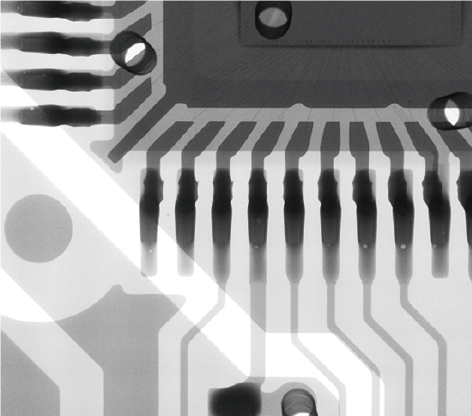

Contrast Adjustment
				The contrast of the X-ray image can be adjusted by changing the gamma value and brightness range. The automatic adjustment is also available.

Applications

Sample Images

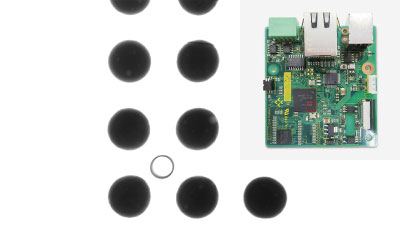

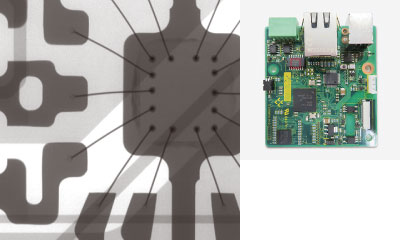

Printed circuit board		Printed circuit board – wire bonding		Printed circuit board – BGA
Tube voltage : 60 kV Tube current : 150 μA Monitor image magnification : 20 times		Tube voltage : 60 kV Tube current : 150 μA Monitor image magnification : 125 times		Tube voltage : 60 kV Tube current : 150 μA Monitor image magnification : 125 times

Fields and Applications of X-ray Radiography Non-Destructive Testing

Pharmaceuticals and Cosmetics		Tablets, Capsules, Catheters, Medical pouches, Foreign object in the face mask, Cosmetics
Automobiles and Electric Vehicles		Automotive components, Wire harness, Batteries, Molded plastic parts, Motor, Insert molded parts, Aluminum die casting, Sensor, Mating parts connection
Electronics		Ball grid array (BGA), Integrated circuit (IC) chip, Connectors, Capacitors, LED, Relays, Printed circuit board (PCB), AC adapter, Light bulbs filament, Electrical cable disconnects, Discharge traces of dielectric breakdown
Advanced Materials		Carbon-Fiber-Reinforced Polymers (CFRP), Insulation material, Carbon, Dissimilar material joint, Contamination in beryllium
Precision Conponents		Probe, Bearing, Mating of plastic parts, Spring position
Creatures and Plants		Laboratory rats, Seeds, Flowers, Shell, Bone, Insects, Rice
Others		Microscopic foreign matter contamination, Voids in welding, Plastic bottle, Sealing of cans
