μnRay7600F

Danh mục:

Matsusada

Từ khóa:

xray 3d sửa máy x ray công nghiệp , sửa máy x ray công nghiệp , máy kiểm tra x ray , kiểm định an toàn phóng xạ , máy x ray công nghiệp , cho thuê máy x ray , mua bán máy x ray cũ mới , máy x ray cũ mới , xray 3d , x ray 3d , xrf , xrf cũ mới , sửa máy đo xrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

The µnRay7600F utilizes 90kV microfocus X-ray tube and 14-bit depth flat panel detector to offer compact and high-performance X-ray inspection system. The new system achieved high magnification in its small size (1400 mm high). It offers large, low-noise, high-contrast images enabling observation of areas that are difficult to distinguish with X-ray inspection systems of the same size.

Additionally, the "versatile and easy-to-use" µRayVision control software is a key feature that provides high operability and high-quality support for inspections. It will offer X-ray solutions for evaluation in product development and quality inspections at production lines. That is, the μnRay7600F is versatile for various applications.

Features

14-bit depth Flat Panel Detector for high resolution
Best-in-class magnification with 90kV microfocus X-ray tube
Compact and easy-to-use system, ideal for inspection in production lines

High Quality Observation with Microfocus X-ray Tube

Equipped with a sealed microfocus X-ray tube, the μnRay7600F provides high quality X-ray images with high magnification during magnified observation. Also, the microfocus X-ray tube enables shortening of the Focus Object Distance (F.O.D.) between the X-ray generating part and the object to achieve a high magnification. The structure combined with its compact system with a height of 1400 mm makes high magnification observations dramatically easier. The μnRay7600F provides better observation on any area than any other conventional system.

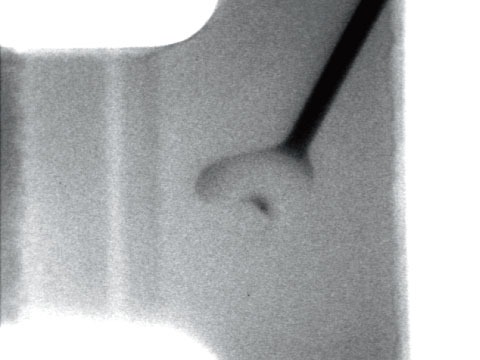

		Wire bonding - Second bond

Model

Model	X-ray Voltage	Sample platform size	Maximum monitor magnification
μnRay7600F	30 kV to 90 kV	260 mm × 350 mm	125 times

Applications

Fields and Applications of X-ray Radiography Non-Destructive Testing

Pharmaceuticals and Cosmetics		Tablets, Capsules, Catheters, Medical pouches, Foreign object in the face mask, Cosmetics
Automobiles and Electric Vehicles		Automotive components, Wire harness, Batteries, Molded plastic parts, Motor, Insert molded parts, Aluminum die casting, Sensor, Mating parts connection

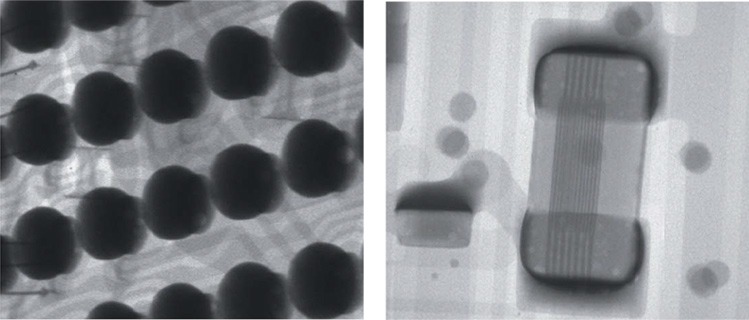

Electronics		Ball grid array (BGA), Integrated circuit (IC) chip, Connectors, Capacitors, LED, Relays, Printed circuit board (PCB), AC adapter, Light bulbs filament, Electrical cable disconnects, Discharge traces of dielectric breakdown
Advanced Materials		Carbon-Fiber-Reinforced Polymers (CFRP), Insulation material, Carbon, Dissimilar material joint, Contamination in beryllium
Precision Conponents		Probe, Bearing, Mating of plastic parts, Spring position

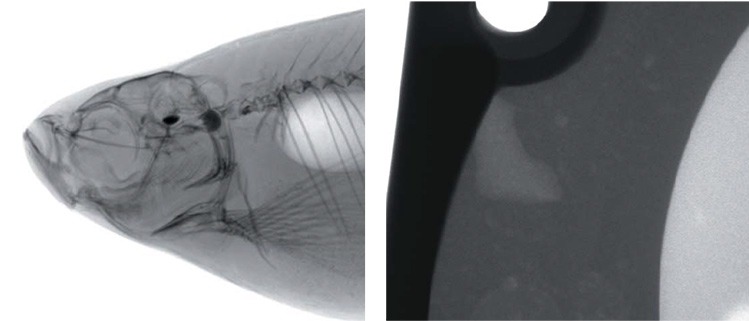

Creatures and Plants		Laboratory rats, Seeds, Flowers, Shell, Bone, Insects, Rice

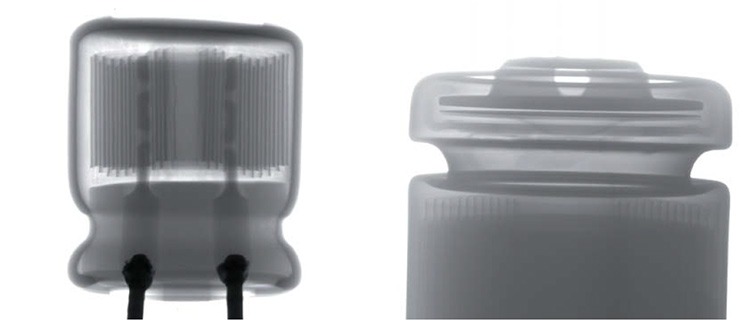

Others		Microscopic foreign matter contamination, Voids in welding, Plastic bottle, Sealing of cans
