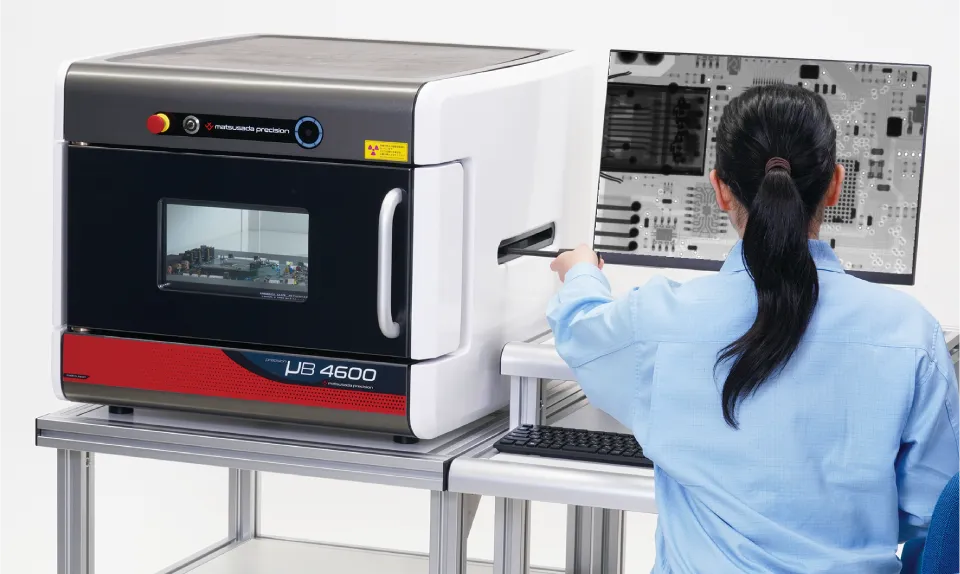

Benchtop Radiography System with The High Power X-ray Tube

With high transmission X-ray, the new inspection system offers high quality and higher power observations than other benchtop-type products. It enables you to easily observe defects in aluminum die casting, assemblies in metal cases, and welding defects of metal interiors. In addition, using Matsusada Precision high voltage power supplies featuring high stability and long life, the product enables reliable X-ray radiation that creates stable and best x-ray images at high power.

Compact Body with Large Sample Aria and Widely Door

Large stage

With the system dimensions of just 685 mm wide, 750 mm deep, and 565 mm high, it is efficient enough with its large stage of X-axis 330 mm × Y-axis 340 mm. The system is suitable for large samples equipped with small objects like M-size electronic circuit boards and connectors of cables.

Easy Operation by Manual Stage Handle

Easy operation

With the stage handle and large front viewport for easy operation, you can flexibly move the object to the desired position. Also, alignment is easy since the transmitted X-ray image can be observed in real-time during radiation. With the optimized dedicated software having a simple operation panel, even those new to X-ray systems can quickly start the inspection.

Selectable X-ray Tubes and Cameras

The product will satisfy your specifications according to your work with the X-ray tube and camera selectable.

●Combination Example

Checking cable disconnection : Mini-focus (60 kV) and 1.5 MP camera: precision μB4600-LEP60
Checking connector crimping : Microfocus (90 kV) and 1.5 MP camera: precision μB4600-LEM90
Observation of 0.1 mm voids in resin moldings : Microfocus (60 kV) and 3 MP camera: precision μB4600-LEF3M60
Observation of aluminum die-cast cavities : Mini-focus (100 kV) and 1.5 MP camera: precision μB4600-LC100E

●Models


Model		X-ray tube	X-ray tube voltage	X-ray tube current	Camera	Maximum inspection area
Standard	precision μB4600	Mini-focus 100 µm	90 kV	0.5 mA	1.5 mega pixels (Standard)	X58 × Y51 mm
Optional Model in X-ray tube	precision µB4600-LP60	Mini-focus 50 µm	60 kV	1 mA
	precision µB4600-LC100	Mini-focus 100 µm	100 kV	0.5 mA
	precision µB4600-LM60	Microfocus 5 µm	60 kV	150 µA
	precision µB4600-LM90	Microfocus 5 µm	90 kV	150 µA
Optional model in X-raytube and camera	precision µB4600-LF3P60	Mini-focus 50 µm	60 kV	1 mA	3 mega pixels (Optional)	X94 × Y53 mm
	precision µB4600-LF3M60	Microfocus 5 µm	60 kV	150 µA
	precision µB4600-LF3M90	Microfocus 5 µm	90 kV	150 µA

X-ray Image Galeries

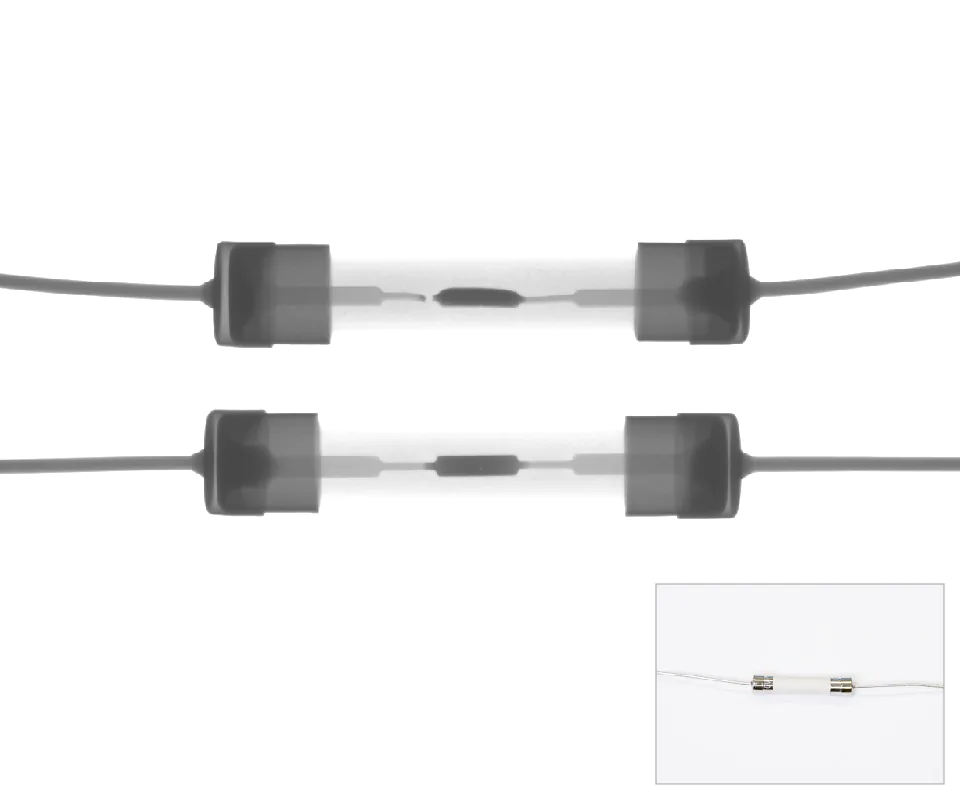

Printed circuit board (PCB) X-ray tube voltage: 100 kV, X-ray tube current: 100 μA Magnificatin: 6x		Fuse (electrical) X-ray tube voltage: 100 kV, X-ray tube current: 100 μA Magnificatin: 6x

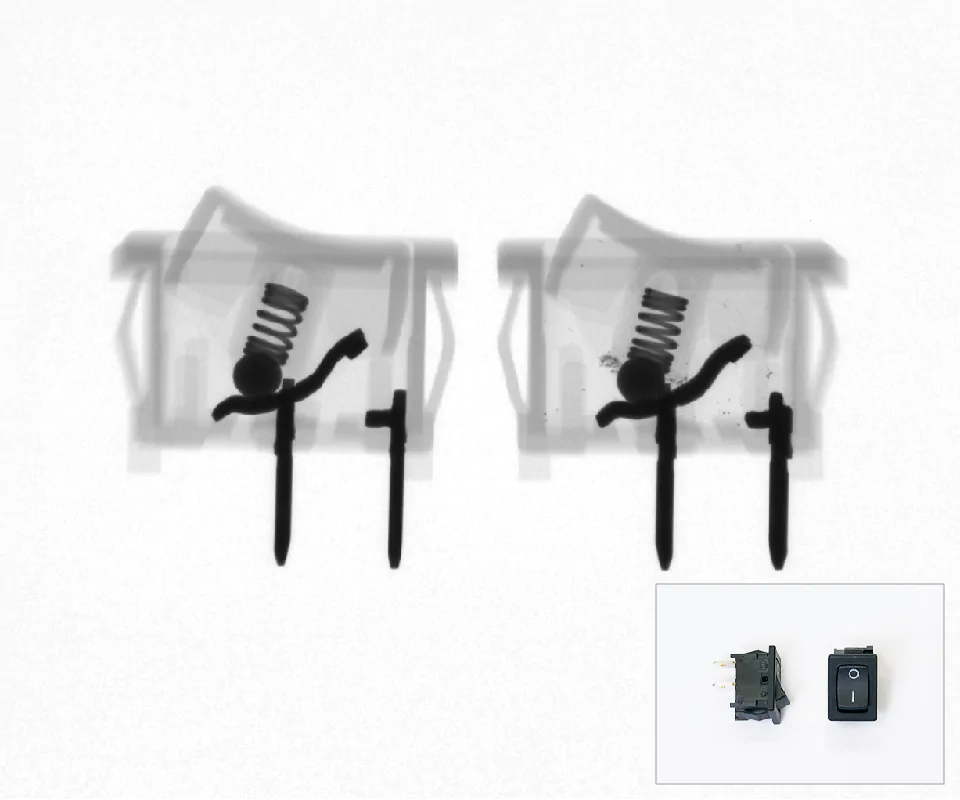

Molded resin products X-ray tube voltage: 40 kV, X-ray tube current: 500 μA Magnificatin: 6x		Seesaw switch X-ray tube voltage: 100 kV, X-ray tube current: 100 μA Magnificatin: 6x
