Mô tả sản phẩm
| Place of Origin: | China |
|---|---|
| Brand Name: | UNICOMP |
| Certification: | CE |
| Model Number: | UNC225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | Can Negotiate |
| Packaging Details: | Wooden Case, Waterproof, Anti-collision |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
Detailed Product Description
| Maximum Penetration（FE）: | 150mm/25mm | Tube Voltage: | 225kV |
|---|---|---|---|
| Focal Size: | 1.0mm/3.0mm | Size: | 2230mm*1582mm*2478mm（L*W*H） |
| Detection Range: | Φ500*800mm | Weight: | 5T |
| Power Consumption: | 8KW | ||
| High Light: |
NDT Inspection Unicomp X Ray8KW Unicomp X RayHigh Penetration Radiography X Ray Machine |
||
Cast Parts Industrial X Ray Machine Real Time Imaging Inspection UNC225
UNC225 is a robust, reliable industrial X-ray inspection system for broad applications in foundries, R&D, laboratories, universities, and educational institutions. The system delivers brilliant image quality with digital flat-panel detector and highly dynamic radioscopy.
| Attribute | Respective Value |
| Maximum penetration(FE) | 150mm/25mm |
| Equipment weight | 5T |
| System Dimension | 2230mm*1582mm*2478mm(L*W*H) |
| X-ray Tube | 225KV |
| Power | 640W/1600W |
| Pixel Pitch | 139μm |
| Focal size | 1.0mm/3.0mm |
| Image Area | 250mm x 300mm |
UNC225 assists you in detection of casting flaws in items such as:
1. Aluminum castings (engine blocks, cylinders, cylinder heads, pistons, knuckles)
2. Turbine blades
3. Wheels and tires
4. Fiber-reinforced materials
5. Ceramics
6. 3D printed materials

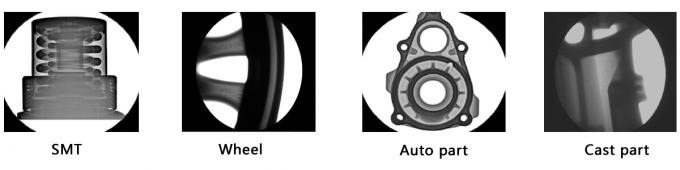

Inspection Images:
(4).jpg)
