Mô tả sản phẩm
| Place of Origin: | China |
|---|---|
| Brand Name: | UNICOMP |
| Certification: | CE |
| Model Number: | UNC450 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | Can Negotiate |
| Packaging Details: | Wooden Case, Waterproof, Anti-collision |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
Detailed Product Description
| Load Weight: | 150kg | Tube Voltage: | 450kV |
|---|---|---|---|
| Work Environment: | 5-40° ≤80%HR | Size: | 2423mm*2294mm*2586mm（L*W*H） |
| X-ray Leakage Dose Rate: | ≤2.5uSv/h | Weight: | 18.65T |
| High Light: |
industrial x ray equipmentindustrial inspection systems |
||
High Density Resolution NDT Real Time X Ray Image System 60mm Penetration
The excellent image quality of the UNC450 system is based on the interplay of the digital flat-panel detector array with our Unicomp software. The technology provides exceptional detail detection, even though varying material thicknesses, and assists in visually determining the depth of casting flaws.
Applications:
Aerospace
Automotive
Foundries
Science & Research
Weld inspection
1. CNC programmable control, to save the detection time of the bulk of the workpiece.
2. C type arm five detection mechanism, no dead angle detection
3. Servo stepper motor drive, stable operation
4. Voltage regulator, isolation, filtering, grounding and other protective functions are complete
5. Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis(optional)
| Attribute | Respective Value |
| Maximum penetration(FE) | 60mm |
| Equipment weight | 18.65T |
| System Dimension | 2423mm*2294mm*2586mm(L*W*H) |
| X-ray Tube | 450KV |
| Detection range | Φ500*800mm |
| Pixel Pitch | 139μm |
| Focal size | 0.4mm/1.0mm |
| Image Area | 215mm x 215mm |

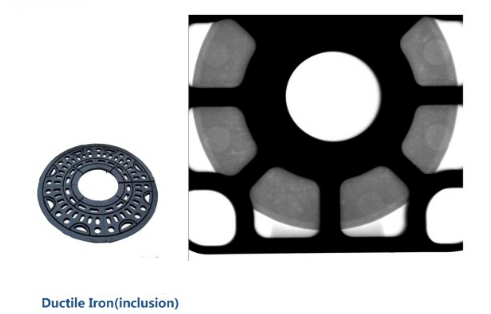

Inspection Images:
.png)
