Electronics Online X Ray Screening Machine LED Welding Voids Flaw 2kW

Danh mục:

Unicomp

Từ khóa:

xray 3d sửa máy x ray công nghiệp , sửa máy x ray công nghiệp , máy kiểm tra x ray , kiểm định an toàn phóng xạ , máy x ray công nghiệp , cho thuê máy x ray , mua bán máy x ray cũ mới , máy x ray cũ mới , xray 3d , x ray 3d , xrf , xrf cũ mới , sửa máy đo xrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	LX2000

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	300 sets per month

Detailed Product Description

Name:	PCB X Ray Machine	Application:	SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Tube Voltage:	130KV	Industry:	Electronics Industry
Warranty:	1 Year	Power Consumption:	2kW
High Light:	Electronics Online X Ray Screening Machine 2kW Pcb Inspection System LED Welding X Ray Screening Machine

LX2000 Online X-ray Detection Equipment with high quality X-ray images

The LX-2000 is a versatile OnLine X-ray Machine designed for automated and semi-automated analysis. In addition to the OnLine capability, the LX-2000 can also be used in a Manual mode as a process monitoring/engineering workstation.

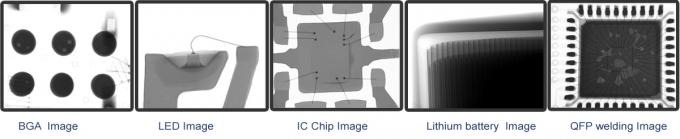

High resolution x-ray images are generated using a closed microfocus 130kV tube with leading edge FPD (Flat Panel Display) detectors. This imaging chain combination is excellent for multiple applications including; PCBA, Semiconductor, Encapsulated Components, and Solar Cell just to name a few.

OUR SERVICE

1. Your inquiry will be replied in 12 hours.
2. Original Manufacture to customers, with competitive price.
3. We provide one year warranty, free training and whole life technology support.
4. We can arrange the shipment by air, DHL,Fedex, UPS, and by Sea,etc for you, and will give you the tracking NO. after shipment.
5. Well-trained and Professional after-sales service team to support you.
6. Manual will package with machine . It will show you how to use machine step by step.
7. Items are only shipped after payment is received.

Training

Training will include:
Basic Radiation Safety.
X-Ray system control functions
Hands-on sample analysis using your typical samples
Training certificates for all attendees.
X-Ray image processing software training.
Basic X-ray signature analysis training.

Item	Definition	Specs
System Parameters	Size	1385(L)x1400(W)x1620(H)mm
	Weight	2000kg
	Power	220AC/50Hz
	Power Consumption	3.5kW
X-ray Tube	Type	Closed
	Max.Voltage	130kV
	Max.Power	40W
	Spot Size	3μm
X-ray System	Intensifier	FPD
	Monitor	22 ‘’LCD
	System Magnification	200 X
Detection Region	Orbit Adjusting Range	80-350mm
X-ray Leakage		<1μSv/h
Control Mode		CNC Motion Mode
