Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	CX3000

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	30 sets per month

Detailed Product Description

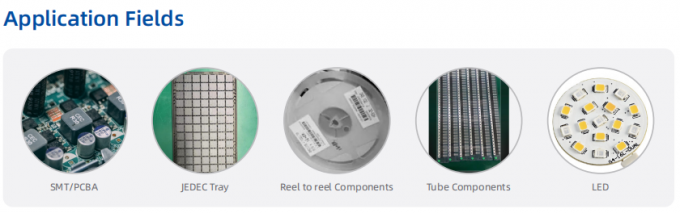

Name:	Electronics X Ray Machine	Application:	SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
X-ray Coverage:	48mm X 54mm	X-ray Leakage:	< 1uSv/h
Weight:	300kg	Power Consumption:	0.5kW
X-ray Tube Voltage:	0-90KV (Adjustable)	Software:	Real Time Auto-measuring
High Light:	Desktop Offline X Ray Machine High Precision Electronics X Ray Machine Electronics Components X Ray Machine

Desktop Offline Real Time X-Ray Machine High Precision For Electronics Components

OUR SERVICE

1. Your inquiry will be replied in 12 hours.

2. Original Manufacture to customers, with competitive price.

3. We provide one year warranty, free training and whole life technology support.

4. We can arrange the shipment by air, DHL,Fedex, UPS, and by Sea,etc for you,
and will give you the tracking NO. after shipment.

5. Well-trained and Professional after-sales service team to support you.

6. Manual will package with machine . It will show you how to use machine step by step.

7. Items are only shipped after payment is received.

FEATURES:

1. 5μm 100kV X-ray tube;

2. Dynamic FPD with high-resolution of 1000×1124;

3. Equipped with 360° rotary fixture to eliminate PoP shadow;

4. The detection area easily positioned by external rocker;

5. Inspection & Analysis of soldering joint and materials inner structure;

6. High safety with seamless lead welding, interlock and emergency button.

Item	Definition	Specs
System Parameters	Size	750(L)x570(W)x890(H)mm
	Weight	300kg
	Power	220AC/50Hz
	Power Consumption	0.5kW
X-ray Tube	Type	Closed
	Max.Voltage	100kV
	Max.Power	200μA
	Spot Size	5μm
Detector	Intensifier	FPD
	X-ray Coverage	48mm x 54mm
	Resolution	208Lp/cm
Work Station	Max.Loading Size	200mm x 200mm
Work Station	Max.Inspection Area	200mm x 200mm
Oblique Angle Views		360° rotary fixture (Optional)
X-ray Leakage		<1μSv/h
