Micro Focal X Ray Inspection Machine 12PPM Max For EV / Cylindrical / Pouch / Polymer Battery

Danh mục:

Unicomp

Từ khóa:

xray 3d sửa máy x ray công nghiệp , sửa máy x ray công nghiệp , máy kiểm tra x ray , kiểm định an toàn phóng xạ , máy x ray công nghiệp , cho thuê máy x ray , mua bán máy x ray cũ mới , máy x ray cũ mới , xray 3d , x ray 3d , xrf , xrf cũ mới , sửa máy đo xrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	Unicomp
Certification:	ISO9001，ISO14004, OHSAS18001
Model Number:	LX-1D12-110

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Can negotiate
Packaging Details:	Wooden Case
Delivery Time:	30-45 days
Payment Terms:	T/T, L/C
Supply Ability:	100Sets/Month

Detailed Product Description

Dimension（L×W×H）:	3540mmX3100mmX1950mm	Weight:	6.0t
Power Consumption:	10KW	Tube Max.Voltage:	110kV
Focal Spot SizeFocal Spot Size:	5um	Max. Capacity:	12PPM
High Light:	FPD Battery X Ray Inspection Machine 110kV X Ray Inspection Machine FPD Battery X Ray Machine

Electric Vehicle Laminated & Stacked Battery, Cylindrical Battery Pouch Lithium Cells, Polymer Battery X-Ray Inspection

Features of EV Battery Xray machine:

Micro focal X-Ray Tube enables high-resolution images
Inspection of batteries in various sizes
Easy to set, qualified/NG products auto-sorting
Easy to operate software
Full automation for high efficiency and consistently high quality
Auto-identification software ensures high quality
Handy control and data analysis with built-in SPC
Safety-oriented design
Fashion appearance

Technical Specifications of Battery X-Ray Machine:

System Parameters	Dimension(L×W×H)	3540mmX3100mmX1950mm
	Weight	6.0t
	Working Environment	0～40℃
	Power Consumption	10KW
	Accuracy	±60μm
	Operating Mode	In-line
X-ray Tube	Type	Closed
	Max.Voltage	110kv
	Max.Current	0.8mA
	Focal Spot Size	15μm
	Quantity	2
Image Detector	Type	Flat Panel Detector (FPD)
	System Magnification	600X
	Pixel Matrix	1536*1536
	Pixel Size	85μm
Applied to		EV Laminated Power Battery
Max.Capacity		12ppm
Operation Ratio		≥95%
Applicable Size		Cell hight:190-290 Cell width:140-180 Cell thickness:4-10mm Carrier Size:customized

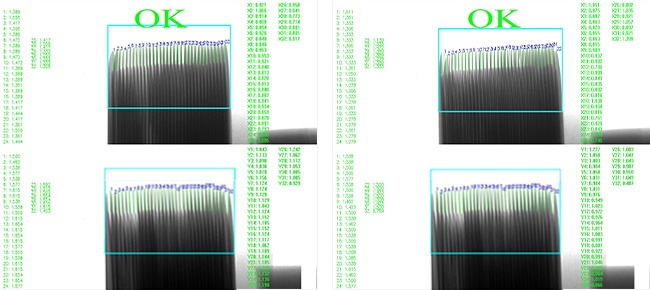

Items		Alignment Metric
Customer Cases		CATL / BYD / Panasonic / DLG / MGL
Equipment Features		● Applicable to in-line X-ray detection for Laminated Power Lithium Battery; ● Auto-shift three inspection modes, automatic docking with production lines, unattended operation; ● Precision positioning and rotating mechanism, adjustable detection angle ensures high-definition image; ● Unicomp-owned R&D of in-line lithium battery inspection software system
