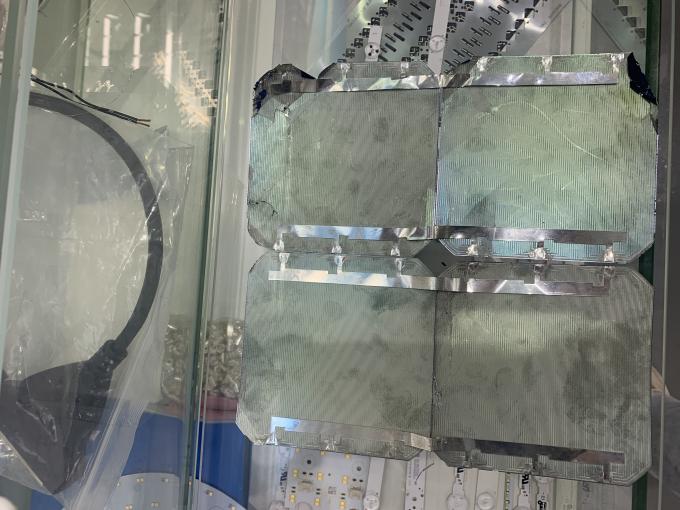

CSP X Ray Inspection Machine 90kV For Solar Cell Soldering

Danh mục:

Unicomp

Từ khóa:

xray3dsửamáyxraycôngnghiệp , sửamáyxraycôngnghiệp , máykiểmtraxray , kiểmđịnhantoànphóngxạ , máyxraycôngnghiệp , chothuêmáyxray , muabánmáyxraycũmới , máyxraycũmới , xray3d , xrf , xrfcũmới , sửamáyđoxrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	AX8200

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	300 sets per month

Detailed Product Description

Name:	Electronics X Ray Machine	Application:	SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Tube Voltage:	100KV	Max.Voltage:	90kV/100kV
X Ray Tube Type:	Closed	X-ray Leakage:	< 1uSv/h
High Light:	CSP X Ray Inspection Machine X Ray Inspection Machine 90kV Solar Cell Soldering X Ray Machine

SMT X-Ray Closed 5g Chipset Electronic Resistance Inspection Machine AX8200

The AX-8200 machine is designed to provide high resolution x-ray imaging primarily for the electronics industry. This versatile system is effective for many applications within the PCB manufacturing process. This includes BGA, CSP, QFN, Flip Chip, COB and the wide range of SMT components. The AX-8200 is a powerful support tool for process development, process monitoring and refinement of the rework operation. Supported by a powerful and easy to use software interface, the AX-8200 is capable of addressing small and large volume factory requirements. (Contact us for details)

Applications

BGA Inspection
Electronic components
SMT assemblies
Pharmaceuticals
Automotive assemblies
Agriculture
Counterfeit inspection
Cell phone battery inspection
Inspection of over molded electrical connectors
Encapsulated components
Aluminum die castings
Molded plastic components
Ceramics
Aerospace components
Electrical / mechanical component

System Summary
Footprint	1080(W)×1180(D)×1730(H)mm
Machine Weight	1050 kg
Power Supply	AC 110~220V, 50/60Hz
Plywood Packing Size	146(W)×128(D)×196(H)cm
Packing Weight	1160 kg
Power Consumption	1.0 kW
X-Ray Tube
Tube Type	Sealed
Max. Power	8W
Voltage	0~90kV (Adjustable)
Focus Spot Size	5μm
Imaging System
Detector	Flat Panel Detector (option 4’’ i.i. Detector)
Pixel Size	85μm
Effective Detection Area	130*130mm
Frame Rates	20fps
Pixel Matrix	1536*1536
System Magnification	600X
Software
Auto-measuring	BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools	Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
CNC Mode	CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display	Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation	Laser Locator for Precise Location
Motion Control System
Movement Control	Joystick, Keypad & Mouse
Max. Loading Area/Weight	510*420mm / 10kg
Max. Inspection Area	435*385mm
Oblique Views	Max. ±60°
Manipulator	5-axis with X / Y / Z1 / Z2 / T
Industrial PC
Monitor	22’’ FHD LCD Display
System OS	Windows 10 64bit
Hard disk	1TB
RAM	8GB
CPU model	Intel i7 Processor
Other Features
Energy Saving	X-Ray Auto-off when it's out of work over than 5 minutes
Safety Operation	Electromagnetic Interlock and warning Light
Portable Design	Mounted with Wheels on Machine Bottom
X-Ray Safety	<1μSv/h (Meets All International Standards)
* Specifications are subject to change without notice, All trademarks are the property of the system maker.
