5µm 0.5kW X Ray Detection Machine 1uSv/h For Laboratory

Danh mục:

Unicomp

Từ khóa:

xray3dsửamáyxraycôngnghiệp , sửamáyxraycôngnghiệp , máykiểmtraxray , kiểmđịnhantoànphóngxạ , máyxraycôngnghiệp , chothuêmáyxray , muabánmáyxraycũmới , máyxraycũmới , xray3d , xrf , xrfcũmới , sửamáyđoxrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	CX3000

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	30 sets per month

Detailed Product Description

Name:	Electronics X Ray Machine	Application:	SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
X-ray Coverage:	48mm X 54mm	X-ray Leakage:	< 1uSv/h
Weight:	300kg	Power Consumption:	0.5kW
High Light:	0.5kW X Ray Detection Machine 5µm X Ray Detection Machine 1uSv/H Laboratory X Ray Scanner

Application

SMT, BGA, CSP, Flip Chip, LED Detection,
Semiconductor, Packaging components, Battery Industry,
Aluminium Die-casting, Moulding Plastic, Ceramics, other special industries.
Electronic components, Automotive parts, Photo-voltaic,

Features

90kV 5µm closed X-ray tube
Max. loading area 235mm×205mm mm, max. inspection area 165mm×190mm, with 200X Magnification
High resolution FPD with 3-axis motion system, meet basic inspection demands
Navigation in windows, target tracking conveniently

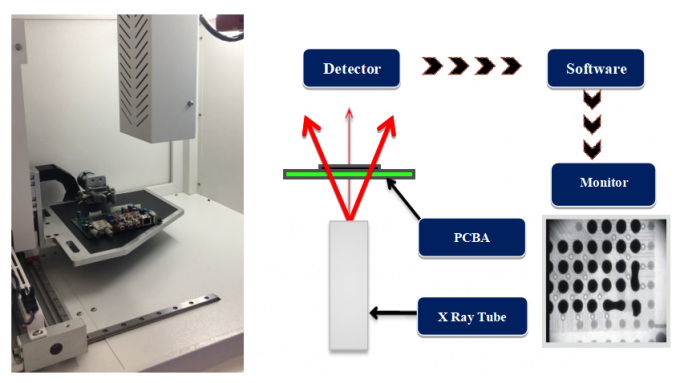

X-ray Images

Technical Specifications

Item	Description	Specifications
X-Ray Tube	Max. Voltages, Type	90kV, Closed
	Power Consumption	8W
	Focal Spot Size	5 μm
	Magnification	200X
Detector	Detector Type	FPD
	Resolution	101 LP/cm
	Effective Area	58mm×54mm
System Computer	Operating System	Industrial PC, Win 7, i7 Processor
System Computer	Monitor	22” LCD
Software	User Interface	Unicomp Multi-function DXI image processing system
Working Platform	Max. Loading Area	235mm×205mm
	Max. Inspection Area	190mm×165mm
	Max. Loading Weight	5kg
	Movement Control	Joysticks, Mouse and Keypads
	Rotation	Option 360° tilt fixture
Navigation	Camera	HD Camera, Laser point
Axis	Manipulator	3-axis with X / Y / Z
Equipment Features	Power Supply	AC 110~220V (±10%) 50Hz, 1kW
	Outline Dimensions	750(L)×570(W)×890(H)mm
	System Weight	300 kg
Warranty	One year warranty , free replacement the parts due to original manufacturer's defect, but expect of man-made damages and force majeure
Optional Accessories	Rotation Jig

X-Ray Safety: All X-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA - CDRH standard for cabinet x-ray systems states that radiation emission will not exceed. 5millirem a /hr.2"from any external surface. Our machines (Leakage <1μSv/h) are typically 5-10 times less than the international standards.
