Mô tả sản phẩm
| Place of Origin: | China |
|---|---|
| Brand Name: | UNICOMP |
| Certification: | CE |
| Model Number: | UNC160 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | Can Negotiate |
| Packaging Details: | Wooden Case, Waterproof, Anti-collision |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
Detailed Product Description
| Load Weight: | 50kg | Tube Voltage: | 160kV |
|---|---|---|---|
| Work Environment: | 5-40° ≤80%HR | Size: | 2100mm*1549mm*2468mm（L*W*H） |
| Resolution: | 3.0LP/mm | Weight: | 3.5T |
| High Light: |
industrial x ray systemsindustrial inspection systems |
||
160KV Laboratories University NDT X-ray Systems Construction Steel Pipes
1. Save the detection time of the bulk of the work piece via the CNC programmable control
2. No dead angle detection with C-arm five-axis motion detection mechanism
3. Servo stepper motor drive to make the operation stability
4. Voltage regulator, isolation, filtering, grounding and other protective functions are complete
5. Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis function (optional)
Image Processing:
Brightness and contrast adjustment; stacking frames; window width and level adjustment; image enhancement, filtering, sharpening, invert, relief and bubble measure; move, zoom in, zoom out; display image scaling; display the current mouse pointer image coordinate and the gray value
Applications:
Aluminum castings (engine blocks, cylinders, cylinder heads, pistons, knuckles)
Turbine blades
Wheels and tires
Fiber-reinforced materials
Ceramics
3D printed materials

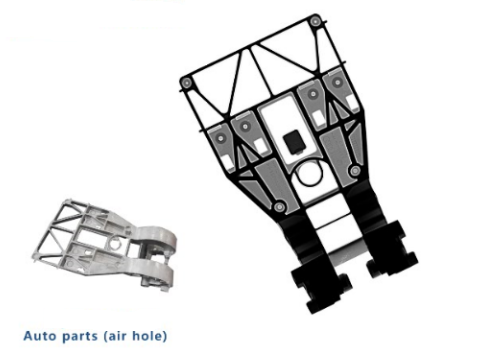

Inspection Images:
.png)
