Mô tả sản phẩm

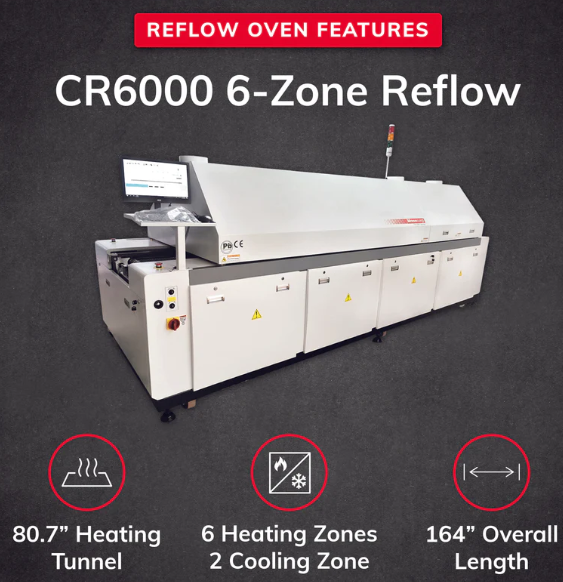

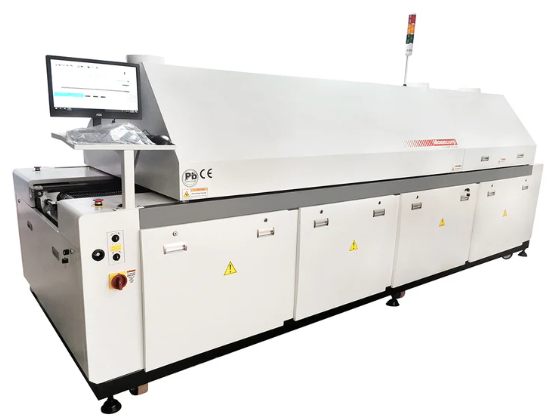

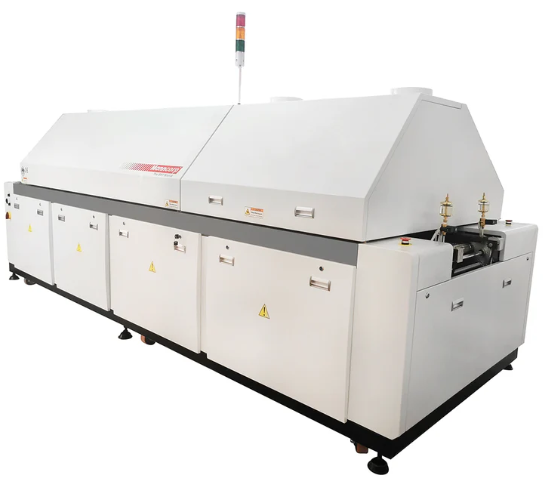

A combination of high-mass heat sources and efficient thermal transfer allows the CR6000 to provide excellent reflow soldering results and throughput with a shorter-than-average heating tunnel. Your 6-zone unit also includes advanced features such as a wide combination pin-over-mesh belt conveyor, partnered pre-loaded KIC Auto Focus profile predictions software, and real-time thermal profiling standard.
| CR6000 Specifications | |
|---|---|
| # of Zones | 6 Upper, 6 Lower |
| Heating Mode | Hot Air Forced Convection |
| Heated Tunnel Length | 81" (2050 mm) |
| Temp Control | PID (Proportional-Integral-Differential) & SSR |
| Temperature Range | Ambient - 300°C |
| Precision of Temp Control | ±1° C |
| Delta T | ±2° C |
| Cooling Zones | 2 |
| Cooling Method | Wind Cooling System |
| On-Board Profiling with 3 Thermocouple Inputs | Yes |
| Ramp Up Time | ~35 min |
| Flux Management System | Yes |
| Mesh Belt Width | 22.4" (570 mm) |
| Pin Conveyor Width | 1.97"-17.7" (50-450 mm) |
| Max Component Height Upper | 30 mm (Above Pins) |
| Max Component Height Lower | 25 mm |
| Conveyor Speed | 0.4-1.8M/min |
| Conveyor Direction | Left-Right |
| Conveyor Height | 900 mm ±20 mm |
| Operating System | Windows 10 |
| Automatic Chain Lubrication | Yes |
| Power Requirement | 220 V 3-Phase, 125A, 60Hz |
| Power Consumption | 7.5-10.5 Kw |
| Total Power | 45 Kw |
| Compressed Air Supply | 80 psi |
| # of Exhaust Ports | 3 |
| Exhaust Opening Size | 8" |
| Total Exhaust Venting | 1200CFM (400CFM Per Port) |
| Hood Opening Mechanism | Electric Raise and Lower |
| Net Weight | 3740 lbs (1700 kg) |

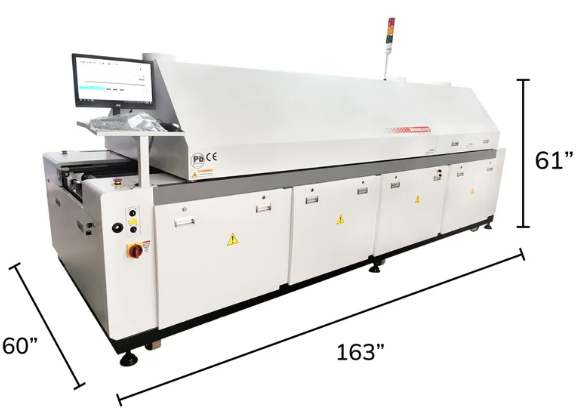

| Machine Dimension | 163" L x 60" W x 61" H (4150 x 1510 x 1550 mm) |
| UPS for Conveyor and PC | Yes |
| Shipping Dimension | 182" L x 65" W x 74" H (4610 x 1660 x 1880 mm) |
| Shipping Weight | 4341 lbs (1969 kg) |
| CE Compliance | Yes |
| Options | |
| Nitrogen Atmosphere Compatible | Yes |
| Infra-red (IR) | Yes |
| Central Support | Yes |
| SMEMA Compatible | Yes |
| Wider Pin and Mesh Conveyor | 17.7" (450 mm) |
| Internal Chilled Water Cooling | Yes |
| Exterior Chiller | Yes |
