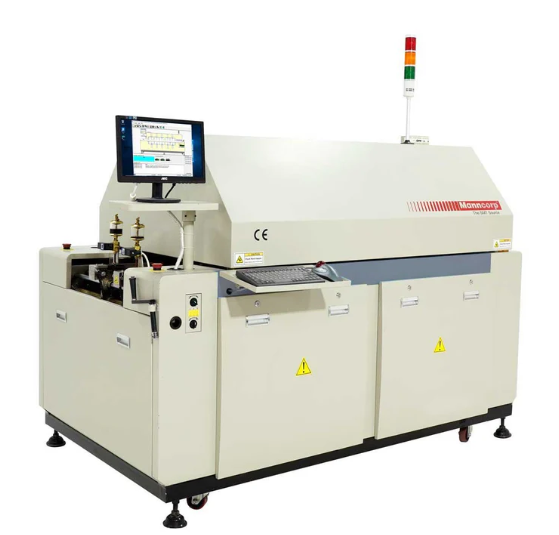

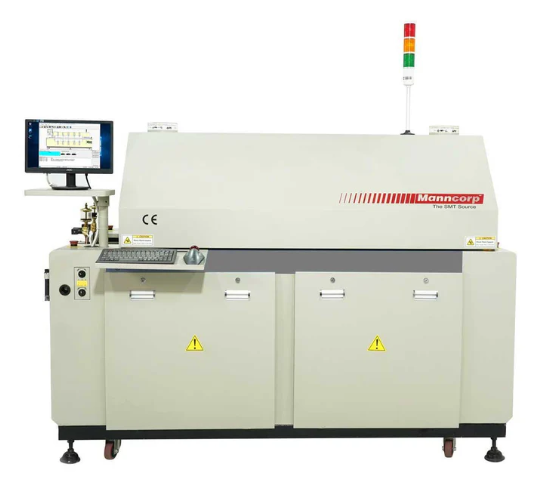

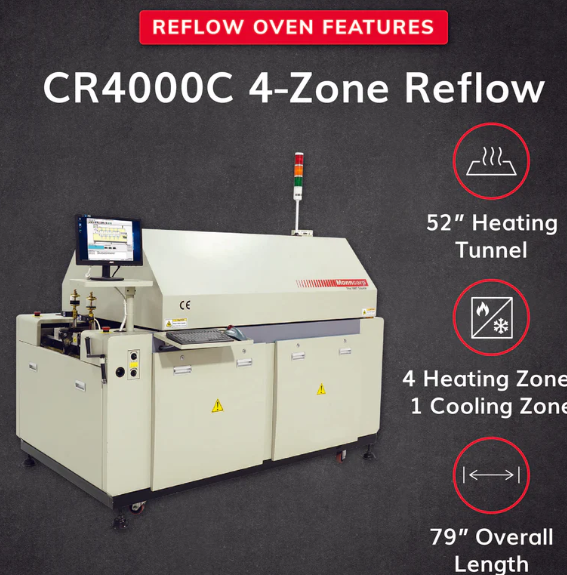

CR4000C 4-Zone SMT Reflow Oven

There's no need to overbuy or compromise when it comes to your reflow ovens. If you're searching for a 4-zone model with a compact footprint that provides medium-volume, lead-free capabilities, you won't need to sacrifice the performance characteristics or profiling options common in larger ovens to save on space. By choosing our CR4000C model, you will get the most full-featured compact reflow oven on the market.

CR4000C Specifications
# of Zones	4 Upper, 2 Lower (Controlled by Upper)
Heating Mode	Hot Air Forced Convection
Heated Tunnel Length	52" (1320 mm)
Temp Control	PID (Proportional-Integral-Differential) & SSR
Temperature Range	Ambient - 280°C
Precision of Temp Control	±1° C
Delta T	±2° C
Cooling Zones	1
Cooling Method	Air
On-Board Profiling with 3 Thermocouple Inputs	Yes
Ramp Up Time	~35 min
Flux Management System	No
Mesh Belt Width	19.7" (500 mm)
Pin Conveyor Width	1.97"-15.75" (50-400 mm)
Max Component Height Upper	30 mm (Above Pins)
Max Component Height Lower	25 mm
Conveyor Speed	0.2-0.9M/min (7.8-35")
Conveyor Direction	Left-Right
Conveyor Height	900 mm ±20 mm
Operating System	Windows 10
Automatic Chain Lubrication	Yes
Power Requirement	220 V 3-Phase, 62A, 60Hz
Power Consumption	4-4.5 Kw
Total Power	19 Kw
Compressed Air Supply	80 psi
# of Exhaust Ports	2
Exhaust Opening Size	6"
Total Exhaust Venting	800CFM (400CFM Per Port)
Hood Opening Mechanism	Electric Raise and Lower
Net Weight	1870 lbs (850 kg)

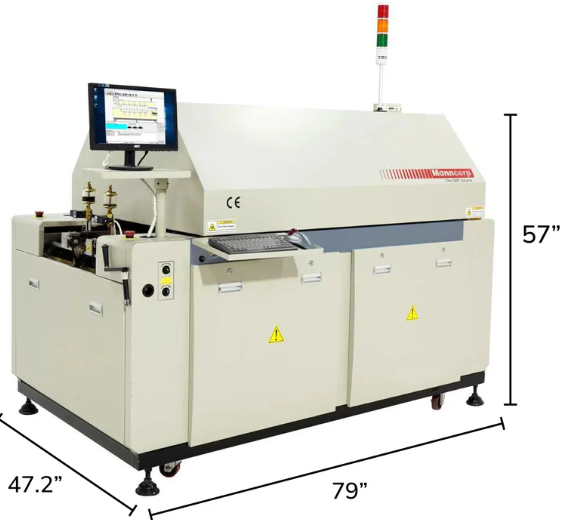

Machine Dimension	79" L x 47.2" W x 57" H (2000 x 1200 x 1450 mm)
UPS for Conveyor and PC	Yes
Shipping Dimension	89.4" L x 59" W x 73" H (2270 x 1470 x 1850 mm)
Shipping Weight	2090 lbs (950 kg)
CE Compliance	Yes
