Mô tả sản phẩm

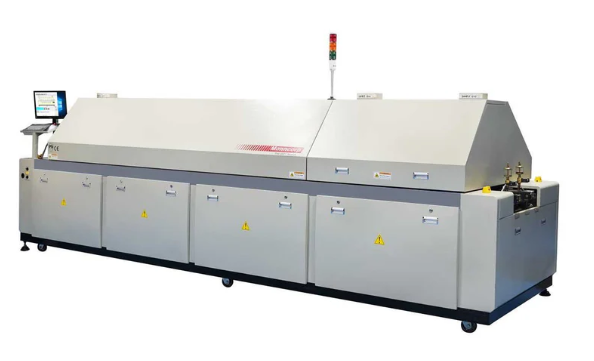

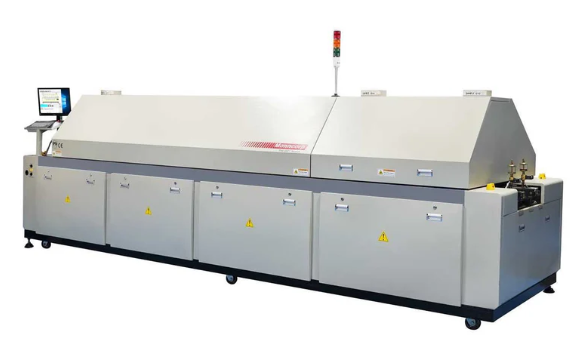

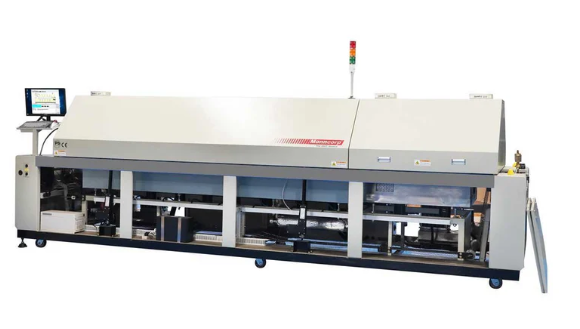

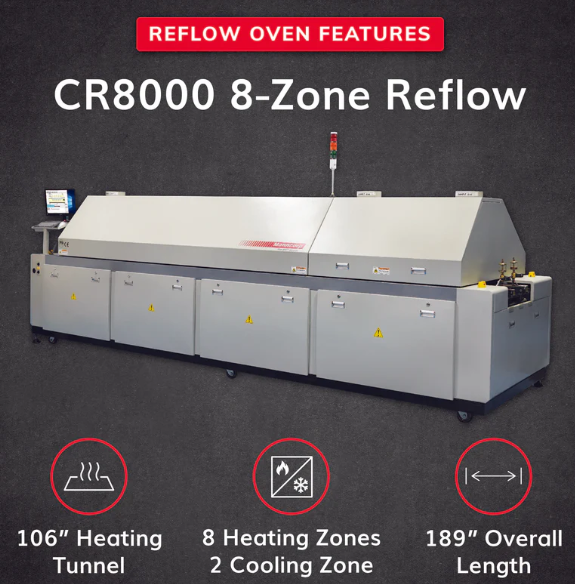

A combination of 8 independently controlled full-convection heating zones (16), 2 cooling zones, and low-velocity, low turbulence air flow allows the CR8000 reflow oven to provide you with thermal accuracy of ±1°C and a ΔT of ±2°C across PCB assemblies to 22" (570 mm) wide. This high-performance model takes up less floorspace than comparable alternatives on the market and offers a throughput that can keep pace with even high-volume production requirements.
| CR8000 Specifications | |
|---|---|
| # of Zones | 8 Upper, 8 Lower |
| Heating Mode | Hot Air Forced Convection |
| Heated Tunnel Length | 106" (2700 mm) |
| Temp Control | PID (Proportional-Integral-Differential) & SSR |
| Temperature Range | Ambient - 300°C |
| Precision of Temp Control | ±1° C |
| Delta T | ±2° C |
| Cooling Zones | 2 |
| Cooling Method | Wind Cooling System |
| On-Board Profiling with 3 Thermocouple Inputs | Yes |
| Ramp Up Time | ~35 min |
| Flux Management System | Yes |
| Mesh Belt Width | 22.4" (570 mm) |
| Pin Conveyor Width | 1.97"-17.7" (50-450 mm) |
| Max Component Height Upper | 30 mm (Above Pins) |
| Max Component Height Lower | 25 mm |
| Conveyor Speed | 0.4-1.8M/min |
| Conveyor Direction | Left-Right |
| Conveyor Height | 900 mm ±20 mm |
| Operating System | Windows 10 |
| Automatic Chain Lubrication | Yes |
| Power Requirement | 220 V 3-Phase, 197A, 60Hz |
| Power Consumption | 10-14 Kw |
| Total Power | 60 Kw |
| Compressed Air Supply | 80 psi |
| # of Exhaust Ports | 3 |
| Exhaust Opening Size | 8" |
| Total Exhaust Venting | 1200CFM (400CFM Per Port) |
| Hood Opening Mechanism | Electric Raise and Lower |
| Net Weight | 4400 lbs (2000 kg) |

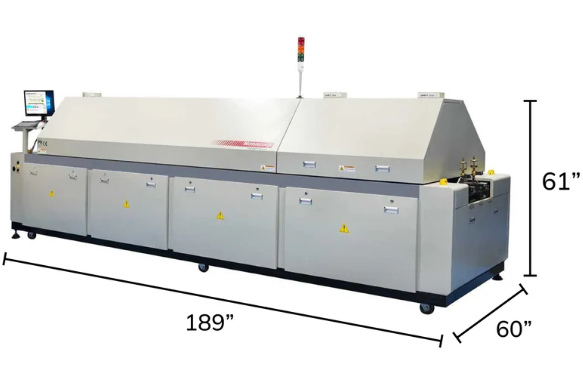

| Machine Dimension | 189" L x 60" W x 61" H (4800 x 1510 x 1550 mm) |
| UPS for Conveyor and PC | Yes |
| Shipping Dimension | 205" L x 71" W x 77" H (5200 x 1850 x 1950 mm) |
| Shipping Weight | 4916 lbs (2230 kg) |
| CE Compliance | Yes |
| Options | |
| Nitrogen Atmosphere Compatible | Yes |
| Infra-red (IR) | Yes |
| Central Support | Yes |
| SMEMA Compatible | Yes |
| Wider Pin and Mesh Conveyor | 17.7" (450 mm) |
| Internal Chilled Water Cooling | Yes |
| Exterior Chiller | Yes |
