Mô tả sản phẩm
| Place of Origin: | China |
|---|---|
| Brand Name: | UNICOMP |
| Certification: | CE |
| Model Number: | UNC160-Y2-D9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | Can Negotiate |
| Packaging Details: | Wooden Case, Waterproof, Anti-collision |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
Detailed Product Description
| Model: | In-line Continous | Detection Speed: | 45s/pcs(18’’)wheel |
|---|---|---|---|
| Tube Voltage: | 160KV/225KV | Focal Size: | 0.5mm/1.0mm |
| Size: | 3250mm*1710mm*2450mm（L*W*H） | Power: | 480W/1800W |
| Weight: | 18.65T | Power Consumption: | 9kW |
| High Light: |
industrial x ray systemsindustrial inspection systems |
||
Alloy Wheels Inline Industrial X Ray Machine Real-time UNC160-Y2-D9
UNC160-Y2-D9 is our inline X-ray inspection system for alloy wheels. Using our new digital detector array it combines high-speed wheel inspection with outstanding image quality.
1. Reliable inspection decisions based on outstanding image quality
2. High-speed wheel inspection of the heaviest wheels with our new gripper manipulator
3. Automatic inspection software for a reliable, objective inspection decision and low pseudo reject numbers
4. Revolving in/out-feed doors for high throughput at maximum up-time and minimum maintenance costs
5. Automatic calibration, eliminating need for frequent program maintenance
6. Full integration into the plant for efficient and comfortable processes
| Attribute | Respective Value |
| Sample Dimensions | 13’’-22’’ Aluminum alloy wheel hub |
| Equipment weight | 18.65T |
| System Dimension | 3250mm*1710mm*2450mm(L*W*H) |
| X-ray Tube | 160kV/225kV |
| Power | 480W/1800W |
| Pixel Pitch | 139 [m] |
| Focal size | 0.5mm/1.0mm |
| Cycle Time | 45s/pcs(18’’)wheel |

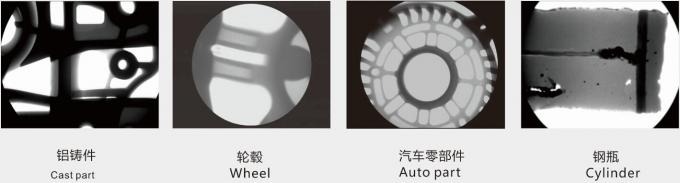

Inspection Images:
(1).jpg)
