Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	LX2000

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	300 sets per month

Detailed Product Description

Color:	Grey	Name:	X-ray Inspection Machine
Application:	SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor	Industry:	Electronics Industry
Size:	1600(L)x1450(W)x1600(H)mm	Power Consumption:	2kW
High Light:	x ray inspection equipment x ray inspection system LED Online X Ray Detection Equipment

LX2000 Online X-ray Detection Equipment Checking LED SMT BGA CSP

The LX-2000 is a versatile OnLine X-ray Machine designed for automated and semi-automated analysis. In addition to the OnLine capability, the LX-2000 can also be used in a Manual mode as a process monitoring/engineering workstation.

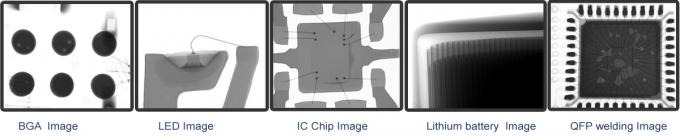

High resolution x-ray images are generated using a closed microfocus 130kV tube with leading edge FPD (Flat Panel Display) detectors. This imaging chain combination is excellent for multiple applications including; PCBA, Semiconductor, Encapsulated Components, and Solar Cell just to name a few.

Item	Definition	Specs
System Parameters	Size	1385(L)x1400(W)x1620(H)mm
	Weight	2000kg
	Power	220AC/50Hz
	Power Consumption	3.5kW
X-ray Tube	Type	Closed
	Max.Voltage	130kV
	Max.Power	40W
	Spot Size	3μm
X-ray System	Intensifier	FPD
	Monitor	22 ‘’LCD
	System Magnification	200 X
Detection Region	Orbit Adjusting Range	80-350mm
X-ray Leakage		<1μSv/h
Control Mode		CNC Motion Mode
