120kV 60PPM X Ray Test Machine For 18650 26650 Batteries

Danh mục:

Unicomp

Từ khóa:

xray 3d sửa máy x ray công nghiệp , sửa máy x ray công nghiệp , máy kiểm tra x ray , kiểm định an toàn phóng xạ , máy x ray công nghiệp , cho thuê máy x ray , mua bán máy x ray cũ mới , máy x ray cũ mới , xray 3d , x ray 3d , xrf , xrf cũ mới , sửa máy đo xrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	Unicomp
Certification:	CE
Model Number:	LX-1Y60-120

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	On request
Packaging Details:	Plywood
Delivery Time:	35 days after order confirmation
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	10 sets per month

Detailed Product Description

Voltage:	110 KV	X-Ray Tube:	Closed
Spot Size:	15μm	Resolution:	110LP/cm
High Light:	60PPM X Ray Test Machine 120kV X Ray Test Machine 26650 Batteries X Ray Scanner

Voltage:

110 KV

X-Ray Tube:

Closed

Spot Size:

15μm

Resolution:

110LP/cm

High Light:

60PPM X Ray Test Machine

120kV X Ray Test Machine

26650 Batteries X Ray Scanner

Application

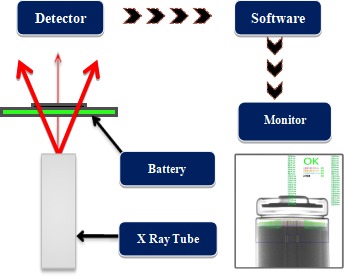

Inline X-Ray inspection machine for Cylinder Lithium Batteries, 18650, 26650, etc.

Features

• Inline conveyor system with high speed and steady transferring capability

• Unicomp self-developed X-Ray inspection software, free upgrading in the whole life time

• Auto-sorting for the OK and NG parts and transferring to different conveyor system

• Special customized design for cylinder lithium batteries, 18650, 26650, etc.

• Easy installation and user friendly

• 120kV 5µm closed X-Ray tube, 4” image intensifier (FPD for option) detector

Item	Description	Specifications
X-Ray Tube	Max. Voltages, Type	120kV, Closed
	Max. Current	0.45mA
	Focal Spot Size	5~15 μm
	Brand	Kevex
Detector	Brand	Toshiba 4” i.i. (FPD for option)
	Resolution	11 LP/mm
	Camera	200 Mega Pixel CCD
System Computer	Operating System	Industrial PC, Windows10 OS, i7 Processor
System Computer	Monitor	22” LCD
Software	User Interface	Unicomp self-developed X-Ray inspection software, Free upgrading in the whole life time
Working Platform	Working Method	Inline Mode
	Conveyor System	1x Uploading Conveyor, 1x Downloading Conveyor for OK parts and 1x Downloading Conveyor for NG parts
	Conveyor Height	950±30mm
	Movement Control	Mouse, Keypads and 10” Interactive Touch Screen
Equipment Features	Working Battery Type	Cylinder Lithium Batteries 18650, 26650, etc
	OS Language	English or Chinese
	Warning Lighting	2x Waring Lighting
	Inspection Efficiency	60PPM
	Inspection Accuracy	±60μm
	Air Source	0.5～0.7Mpa (5-7kgf/cm2), Flow rate: 15L/min
	Power Supply	AC 110~220V (±10%) 50/60Hz, 4.0kW

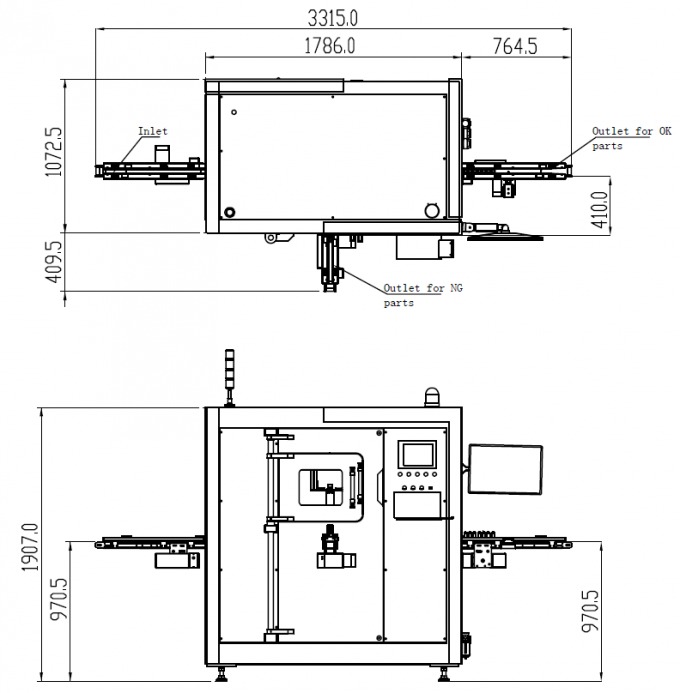

	Footprint / Weight	3315(W)×1482(D)×1920(H)mm, 2000kg
Warranty	One year warranty , free replacement the parts due to original manufacturer's defect, but expect of man-made damages and force manure

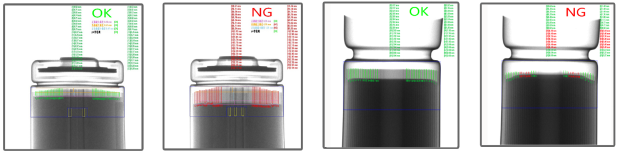

X-Ray images

X-Ray Safety: All X-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA - CDRH standard for cabinet x-ray systems states that radiation emission will not exceed. 5millirem a /hr.2"from any external surface. Our machines ( Leakage <1μSv/h ) are typically 5-10 times less than the international standards.

¢ Specifications are subject to change without notice, All trademarks are the property of the system maker
