Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE
Model Number:	UNC160S

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	10 sets per month

Detailed Product Description

Color:	Orange	Name:	NDT X-ray Machine
Application:	Steel Pipes, Aluminum Casting	X-ray Leakage:	< 1uSv/h
Weight:	1.7T	Power Consumption:	6kW
High Light:	Casting NDT Unicomp X Ray Real Time Imaging Unicomp X Ray 6kW Industry X Ray Machine

Casting NDT Real-time Imaging Unicomp X-ray Equipment UNC160S Industry Machine

Features:
● Strong penetration,high reliable,low breakdown, long life;
● High definition,resolution FPD;
● Multi-functional workstation,360 rotation and shift;
● High automation,fast detection speed;
● User friendly software design for interfacing and to facilitate,customize software function development requirement.

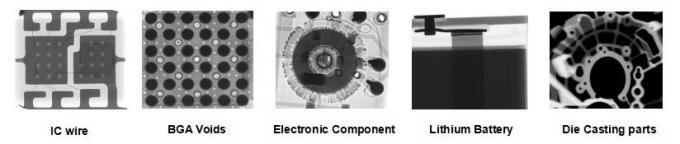

Applications:

● Small aluminum castings, iron castings

● Precision casting, metal products, plastic products

● Electronic components

System Parameters
Dimensions	1480mm1106mm2038mm(LWH)
Equipment weight	1.7T
Power	6KW
Maximum penetration(AL)	100mm/20mm
Detection range	ɸ250*550mm
Load weight	15KG
Work environment	5-40° ≦80﹪HR
Install power	AC220V±5﹪ 50HZ
X-ray leakage dose rate	≤1μSv/h
X-ray Generator
Tube voltage	160kv
Power	480W
Focal size	0.5mm
Detector
Imaging field	φ 145mm
Resolution	3.1LP/mm
Detector (FPD Optional)
Image area	250mm x 300mm
Pixel matrix	1792 x 2176
Pixel size	139μm
Frame rate	9 fps(1x1)30 fps(2 x 2)
Software Functions
Image processing	Brightness and contrast adjustment; stacking frames; window width and window position adjustment; image enhancement, filter, sharpening, invert, relief and bubble measure; move, zoom in, zoom out; display image scaling; display of the mouse pointer image coordinate and the gray value
Image measurement	Distance, radius, polygon, angle measurement; arrows and text labels; save the processed image;
Motion control	Speed adjustment of each moving axis; CNC programming; manual operation
Additional Function
Save the detection time of the bulk of the work piece via the CNC programmable control Servo stepper motor drive to make the operation stability High-precision transmission structure to ensure the accuracy of the movement (for repeat positioning accuracy) Voltage regulator, isolation, filtering, grounding and other protective functions are complete Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis function (optional)
