Mô tả sản phẩm
Inspect the invisible in one go
The new level of simplicity
ZEISS METROTOM 1
With the easy-to-use CT technology of the ZEISS Metrotom 1, anyone can efficiently perform
complex measurement and inspection tasks with just one scan. Measure and inspect hidden
defects and internal structures that cannot be detected with tactile or optical measuring systems.
One machine, several advantages
| Easy handling Installation is quick and only little training is needed for safe handling of ZEISS METROTOM 1 |
Precise measurements |
|
| Small footprint With dimensions of 1750 (W) x 1820 (H) x 870 (D) mm, the CT system fits into any metrology lab |
Fast return on invest Acquisition costs as well as cost of owner-ship are minimal with the low-maintenance system |
| Applications | .png) |
|

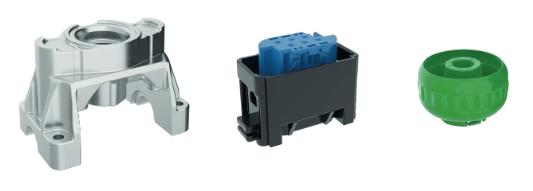

| Whether medium or small sized parts, plastic or light metal – with ZEISS METROTOM 1, you can inspect a variety of components such as connectors, plastic caps, aluminum parts and more. |
Specifications
| X-ray source: 160 kV | Metrology specification: SD < 5 μm | |
| X-ray detector: 2.5 k | Dimensions: 1750 (W) x 1820 (H) x 870 (D) mm | |
| Measuring volume: 165 x 140 mm | Weight: 2100 kg | |
| Voxel size: 66 μm | Software: GOM Volume Inspect (included) |
