X3500 STANDALONE INDUSTRIAL CT X-RAY INSPECTION SYSTEM

Standalone Manipulator

The X3500 is the standalone manipulator from North Star Imaging’s newest system, the X3000. The X3500 is the best option for customers needing a compact system with capabilities that are typically only available on a larger X-ray or CT system. This system has the versatility needed for inspecting small or large components. North Star Imaging’s team of experts will help you select the best system configuration for your application.

Specifications

System Features

• DICONDE compliant
• Integrated Process Controls
• Advanced Imaging Modalities
  • SubpiX
  • VorteX
  • MosaiX
  • Ring Reduction
• Integrated efX Software Suite
• Integrated Motion Control

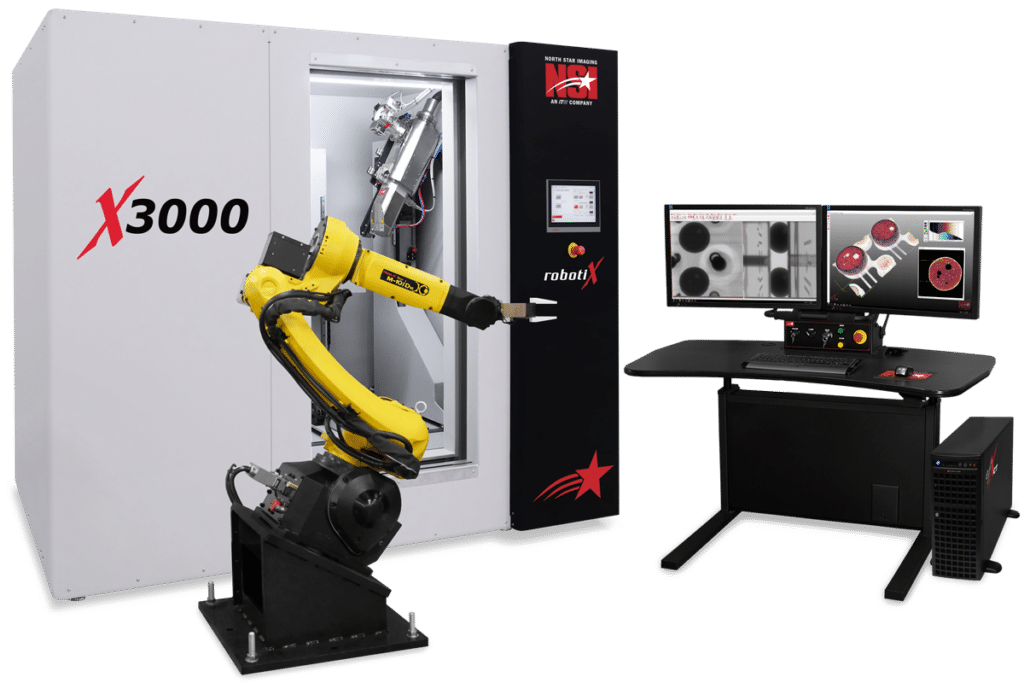

• Available with our automated RobotiX add-on

CT Software

• Reconstruct 3D models quickly using our 5-step guided wizard
• Comprehensive acquisition, processing and archival program with user-friendly interface
• High performance image processing and measurement functions
• DICONDE compliant
• Non-proprietary multiple image format
• Computed Tomography acquisition module
• 3D Computed Tomography reconstruction and visualization
• Optional 4D Computed Tomography
• Available with VorteX, SubpiX, and MosaiX

X-Ray Source

• Voltage Range: 10 kV – 225 kV
• Minimum Focal Spot Size: ~900 nm
• X-ray Tube Types:
  • Microfocus – Reflection
  • Microfocus – Transmission
  • Microfocus – Dual Head
  • Minifocus

X-Ray Detector

• Digital X-ray Detector Types: Flat Panel (DDA)
• Grade Options: Premium, Superior (ASTM)
• Pixel Pitch: 100-200 μm
• Maximum Detector Size: 17 x 17 in [43.2 x 43.2 cm]

Manipulator

• Maximum Sample Weight: 75 lb [34 kg]
• Part Travel:
  • Horizontal: 13.8 in [35.1 cm]
  • Vertical: 24 in [60.96 cm]
  • Source to Detector: 32 in [86 cm]
  • Rotation: 360° Continuous
• Nominal Part Envelope: 19.5 x 24 in [50 x 61 cm]
• Maximum Focal Distance: 53 in [134.6 cm]
• Part Manipulation Control:
  • All drives variable speed joystick controlled
  • Each axis is independently controlled
• Control-X: Programmable CNC controlled automated scanning with automatic image processing and archiving capabilities

Applications

X3500 Applications

• Failure Analysis
• Assembly Verification
• Reverse Engineering
• Density Analysis
• Finite Element Analysis
• Void and Porosity Analysis
• 2D and 3D Metrology
• Internal and External Measurements
• Product Quality Compliance
• Research and Development (R&D)
• 3D CAD comparisons
• Weld and Braze Quality Analysis
• In Situ Monitoring
• Additive Manufacturing System Qualification
