MEVX SERIES HIGH ENERGY INDUSTRIAL CT X-RAY INSPECTION SYSTEM

High Energy X-Ray Systems

The most advanced DR & CT systems in the world are now available with Linear Accelerators. Offered with energies up to 9 MeV, the MeVX Series of systems provide the same ease of use as our low energy systems in a high energy format. Utilizing our current efX Software Suite along with the superior service, support and training that we are known for puts these systems in a class of their own.

Specifications

System Features

• X-ray Energies up to 9 MeV
• Capable of scanning large components
• DICONDE compliant
• Integrated Process Controls
• Advanced Imaging Modalities
  • SubpiX
  • VorteX
  • MosaiX
• Integrated efX Software Suite
• Integrated Motion Control

CT Software

• Reconstruct 3D models quickly using our 5-step guided wizard
• Comprehensive acquisition, processing and archival program with user-friendly interface
• High performance image processing and measurement functions
• DICONDE compliant
• Non-proprietary multiple image format
• Computed Tomography acquisition module
• 3D Computed Tomography reconstruction and visualization
• Optional 4D Computed Tomography
• Available with VorteX, SubpiX, MosaiX, and Ring Reduction

X-Ray Sourse

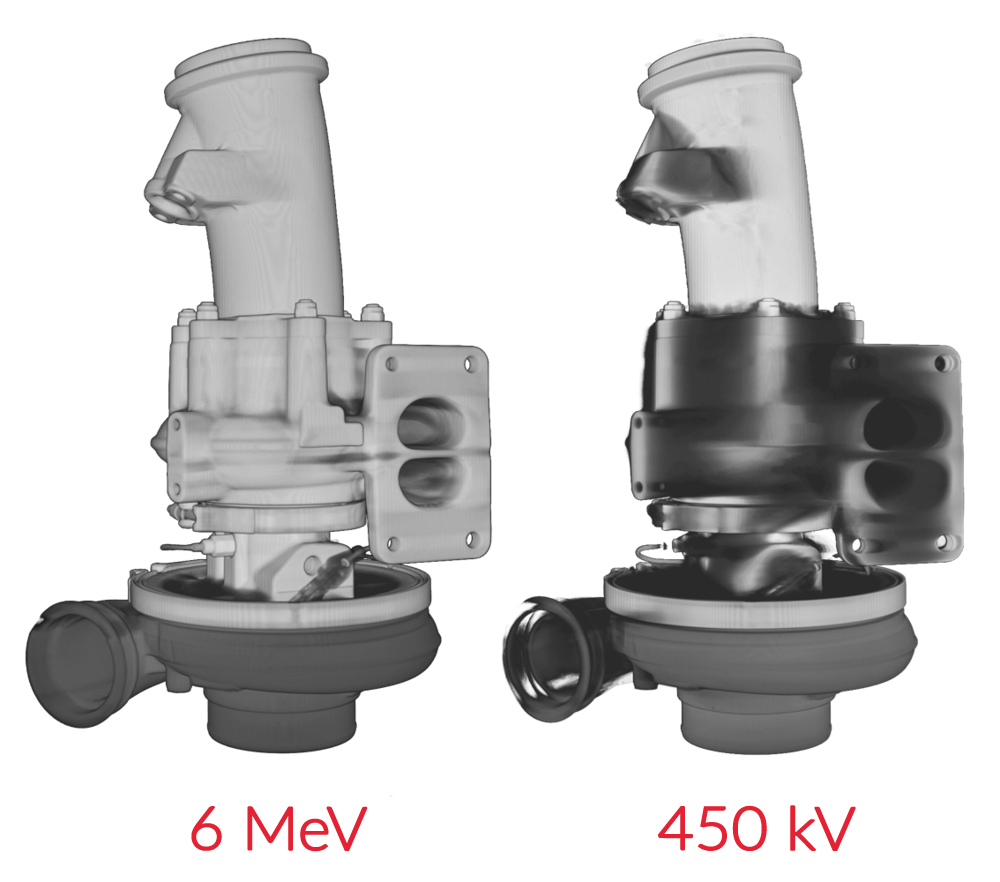

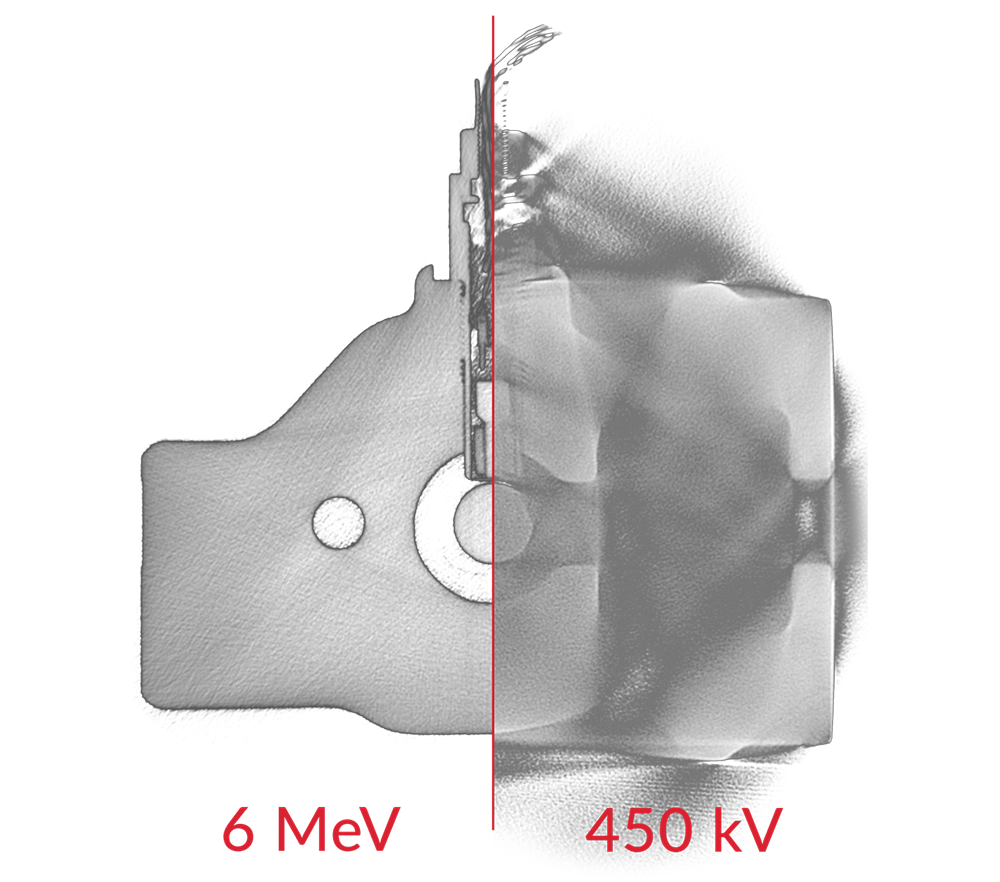

• Energy Selection: 3/6/9 MeV
• Minimum Focal Spot Size: >1 mm
• Output (Dose): 3-30 Gy/min

X-Ray Detector

• Digital X-ray Detector Types: Flat Panel (DDA), Linear Diode Array (LDA)
• Pixel Pitch: 100-400 µm
• Maximum DDA Size: 16.8 x 16.8 in [42.7 x 42.7 cm]
• Maximum LDA Length: 35.9 in [91.2 cm]

Manipulator

• Maximum Sample Weight: 3000 lb [1360 kg] standard
• Part Travel:
  • Horizontal: 48 in [122 cm]
  • Vertical: 48 in [122 cm]
  • Source to Detector: 132 in [335 cm]
  • Rotation: 360° Continuous
• CT Scanning Envelope:
  • DDA Max Diameter: 48 in [122 cm]
  • DDA Max Height: 70 in [178 cm]
  • LDA Max Diameter: 48 in [122 cm]
  • LDA Max Height: 55 in [139.7 cm]
• Focal Distance:
  • Minimum Focal distance: 178 in [452 cm]
  • Maximum Focal distance: 310 in [787 cm]
  • Focal distances may vary dependent on manipulator placement. Minimum focal distance may be reduced by up to 100 in [254 cm]
• Motorized detector travel for variable focal distance adjustment
• Part Manipulation Control:
  • All drives variable speed joystick controlled
  • Each axis is independently controlled

Dimentions

• Dimensions:
  • Width: 380 in [965 cm]
  • Depth: 110 in [279 cm]
  • Height: 135 in [343 cm]
• Weight: 13,500 lb [6,124 kg]
• Touch screen operation
• System includes one ergonomic desk and chair

Applications

MeVX Applications

• Failure Analysis
• Assembly Verification
• Reverse Engineering
• Density Analysis
• Finite Element Analysis
• Void and Porosity Analysis
• 2D and 3D Metrology
• Internal and External Measurements
• Product Quality Compliance
• Research and Development (R&D)
• 3D CAD comparisons
• Weld and Braze Quality Analysis
• In Situ Monitoring
• Additive Manufacturing System Qualification
