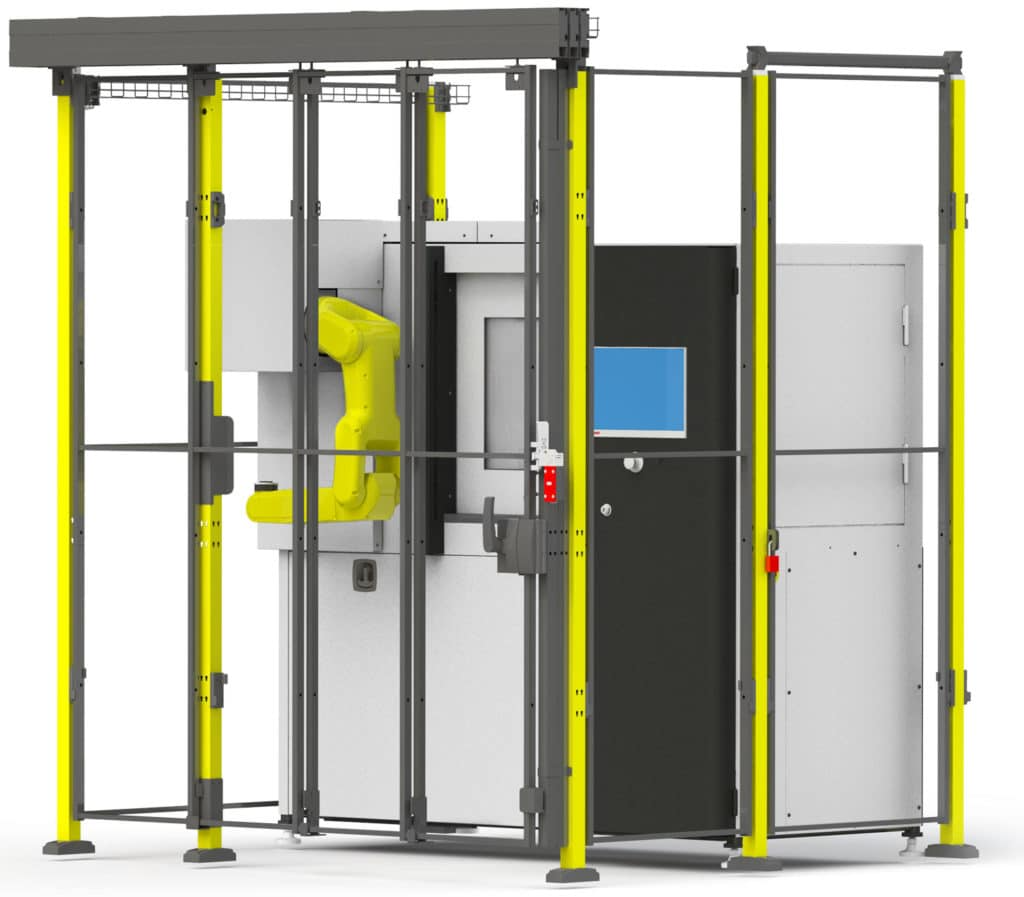

X25 ROBOTIX AUTOMATED INDUSTRIAL CT X-RAY INSPECTION SYSTEM

Automated X-Ray CT Scanning System

Robotic X-ray scanning systems make batch scanning and part loading & unloading effortless.

RobotiX Part Loaders

RobotiX part loaders allow for automatic part loading and unloading for reduced cycle times and increased productivity. Our RobotiX solutions, when combined with our Assisted Defect Recognition software, can significantly automate the X-ray inspection process. This is more important than ever in a tight job market where human capital is at a premium. Set-up and operation of our RobotiX loaders are effortless through a simple interface that allows the operator to easily create new robotic motion programs. RobotiX motion programs are created through NSI’s efX-DR acquisition software. This feature allows the user to program the robot and configure the image acquisition parameters all through a single software interface. This means your operators don’t have to learn another software program, which saves your company valuable time and money.

Specifications

RobotiX Benefits

• Automatic part loading/unloading for autonomous operation
• Reduced cycle time for increased productivity
• Simple user interface with sub-routines
• Seamless integration with efX-DR & efX-CT

RobotiX Features

• 6 Axis
• Reach & capacity dependent upon application
• Up to ±0.00079 in (± 0.02 mm) repeatability
• OSHA Compliant Safety Fence

RobotiX Loader Highlights

• Fanuc LR-Mate 200iD/7L robot
• 7 kg (15 lb) max payload
• 480 Vac +10%, 3 phase, 50/60 Hz, 30 Amp robot power requirement
• Mounted to the side of the cabinet
• Cascading primary safety gate
• Secondary swing gate with padlock for side panel service access
• Supports electronic grippers

X25 System Highlights

• Ideal for submicron X-ray and CT applications
• X-ray Energies from 10 kV – 160 kV
• Minimum Focal Spot Size: ~900 nm
• Nominal Part Envelope: 9 x 6 in [22 x 15 cm]
• Maximum Focal Distance: 37 in [94 cm]

Applications

RobotiX Applications

• Failure Analysis
• Assembly Verification
• Reverse Engineering
• Density Analysis
• Finite Element Analysis
• Void and Porosity Analysis
• 2D and 3D Metrology
• Internal and External Measurements
• Product Quality Compliance
• Research and Development (R&D)
• 3D CAD comparisons
• Weld and Braze Quality Analysis
• In Situ Monitoring
• Additive Manufacturing System Qualification
