Mô tả sản phẩm
| Place of Origin: | China |
|---|---|
| Brand Name: | UNICOMP |
| Certification: | CE |
| Model Number: | UNC160S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | Can Negotiate |
| Packaging Details: | Wooden Case, Waterproof, Anti-collision |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
Detailed Product Description
| Max. Penetration: | 100mm/20mm | Detection Range: | ɸ 250 Mm * 550 Mm |
|---|---|---|---|
| Tube Voltage: | 160KV | Load Weight: | 15KG |
| Size: | 2100(L)x1720(W)x2470(H)mm | Image Area: | 250 Mm X 300 Mm |
| Weight: | 3.5T | Power Consumption: | 6kW |
| High Light: |
industrial x ray equipmentindustrial x ray systems |
||
Industrial X Ray Machine Unicomp UNC160S For Metal Plastic Casting
With UNC160S, Unicomp X-ray inspection of wheels is carried out efficiently for spot-check sample tests or small batch sizes. This system is ideally suited for inspections near the casting machines or in R&D. Best-in-class scalabe X-ray inspection systems for assembly and laboratory applications.With optimitzed software and hardware, these systems produce higher quality and more consistent results than other industrial inspection systems currently on the market.
1. Accurate, fast, and repeatable inspection - manually and automatically
2. High power, high resolution inspection of very small features
3. Easy to use, dynamic image enhancing filters
4. Highest image quality for reliable inspection decisions
5. Economic solution for small batch sizes and sample tests
6. Excellent results with minimum investment due to ease-of-use software interface
7. Small footprint fits into existing plant layouts
8. Precision roller stand for comfortable manipulation of the un-machined wheel
9. A reasonably priced, easy-to-operate system with a compact design and the newest radiographic technology gives it a convincing advantage when you add the “Wheel” option for alloy wheel inspection.
| Attribute | Respective Value |
| Sample Dimensions | Outer width: 250 [mm] max. Outer diameter: 550 [mm] max. |
| Maximum Sample Weight | 15 [kg] |
| System Dimension | 1480mm*1106mm*2038mm(L*W*H) |
| X-ray Tube | 160 [kV] |
| Detector Active Area | 250*550mm |
| Pixel Pitch | 139 [m] |
| Maximum penetration(AL) | 100mm/20mm |
| Detector Resolution | 3.1LP/mm |

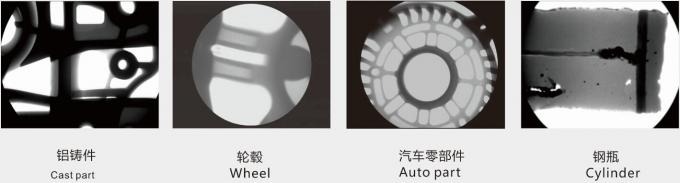

Inspection Images:
