Mô tả sản phẩm

Place of Origin:	China
Brand Name:	Unicomp
Certification:	CE, FCC
Model Number:	AX9100

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Polywood case package data:166cm156cm195cm total weight:1900KG
Delivery Time:	45 days
Payment Terms:	T/T, L/C

Detailed Product Description

Function:	PCBA，BGA Inspection	Equipment:	Quality Check
High Light:	electronics x ray system , x ray equipment

Function:

PCBA，BGA Inspection

Equipment:

Quality Check

High Light:

electronics x ray system

x ray equipment

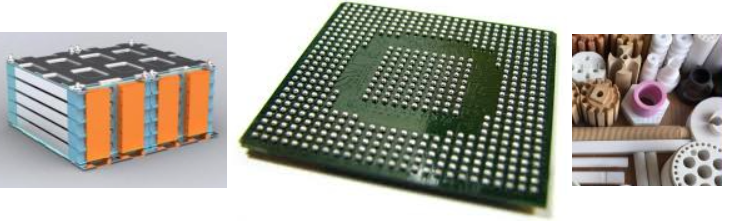

Application

Semiconductor, Packaging components, Battery Industry,
Electronic components, Automotive parts, Photo-voltaic,
Ceramics, other special industries.
Aluminium Die-casting, Moulding Plastic.
SMT, BGA, CSP, Flip Chip, LED Detection,

Features

Max. loading area φ570mm, max. inspection area 450mm*450mm, with 1600X Magnification
Tilt detection with 55° and rotation 360°operation together with 6 axis movement
Multi-function DXI image processing system, CNC programmable detection
X-ray tube & detector automatic lifting and descending, with convenient target point positioning system
130kV (Option 110KV) 7µm closed X-ray tube, high speed & Millions pixels high resolution FPD

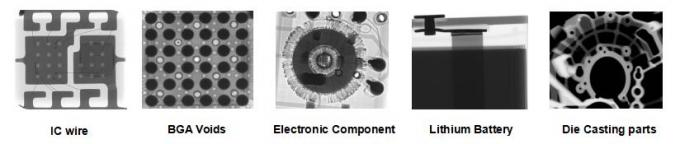

X-ray Images

Technical Specifications

Item	Description	Specifications
X-Ray Tube	Max. Voltages, Type	130kV (Option 110KV), Closed
	Power Consumption	40W(25W)
	Focal Spot Size	7 μm
	Magnification	1600X
Detector	Detector Type	FPD
	Resolution	101 LP/cm
	Effective Area	116.4mm ×145.7mm
System Computer	Operating System	Industrial PC, Win 7, i7 Processor
System Computer	Monitor	22” LCD
Software	User Interface	Unicomp Multi-function DXI image processing system
Working Platform	Max. Loading Area	φ570mm
	Max. Inspection Area	450mm×450mm
	Max. Loading Weight	10kg
	Movement Control	Joysticks, Mouse and Keypads
	Motion Range (Up and Down)	200mm
	Table Tilting Angle	55° Tilting and 360° Rotation
Navigation	Camera	HD Camera, Laser point
Axis	Manipulator	6-axis with X1/ X2 / Y / Z / T(55°) / R(360°)
Equipment Features	Power Supply	AC 110~220V (±10%) 50Hz, 2.0kW
	Outline Dimensions	1450(W)×1500(D)×1850(H)mm
	System Weight	1900 kg
Optional Accessories	None
Warranty	One year warranty , free replacement the parts due to original manufacturer's defect, but expect of man-made damages and force majeure
