Mô tả sản phẩm
The CIQTEK SEM2000 is a basic and versatile analytical tungsten filament scanning electron microscope with 20 kV resolution up to 3.9 nm and support for upgrading to 30 kV, allowing observation of microstructural information of sub-microscale samples.
It has a larger range of motion than a desktop / benchtop SEM and is suitable for rapid screening of samples, and has more expansion interfaces for BSED, EDS/EDX, and other accessories to enable a wider range of applications.
.png)
.png)
| Electro-Optical Systems | Electron Gun | Pre-aligned medium-sized fork-type tungsten filament |
| Resolution | 3.9 nm @ 20 kV (SE) | |
| 4.5 nm @ 20 kV (BSE) | ||
| Magnification | 1 x～300,000 x | |
| Acceleration Voltage | 0.5 kV ~ 20 kV | |
| Imaging Systems | Detector | Secondary Electron Detector (ETD) |
| *Backscattered electron detector (BSED), *energy spectrometer EDS, etc. | ||
| Image Format | TIFF, JPG, BMP, PNG | |
| Vacuum System | High Vacuum | Better than 5×10-4 Pa |
| Control Mode | Fully automated control system | |
| Pumps | Mechanical Pump ×1, Molecular Pump ×1 | |

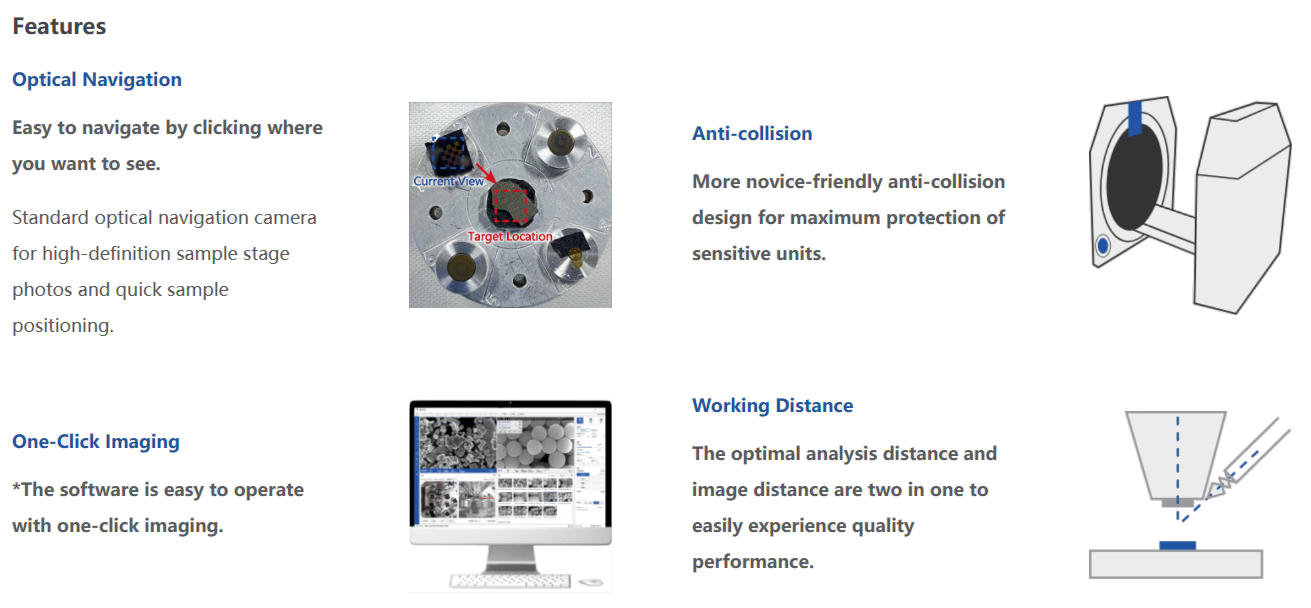

| Sample Chamber | Camera | Optical Navigation |
| Sample Table | Two-axis automatic | |
| Distance | X: 100 mm | |
| Y: 100 mm | ||
| Software | Operating System | Windows |
| Navigations | Optical Navigation, Gesture Quick Navigation | |
| Automatic Functions | Auto Brightness Contrast, Auto Focus, Automatic Dissipation | |
| Special Functions | Intelligent Assisted Dispersion, *Large-Scale Image Stitching (Optional accessories) | |
| Installation Requirements | Space | L ≥ 3000 mm, W ≥ 4000 mm, H ≥ 2300 mm |
| Temperature | 20°C (68°F) ~ 25°C (77°F) | |
| Humidity | ≤ 50 % | |
| Power Supply | AC 220 V(±10 %), 50 Hz, 2 kVA |
