Mô tả sản phẩm
| Place of Origin: | China |
|---|---|
| Brand Name: | UNICOMP |
| Certification: | CE |
| Model Number: | UNC225π |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | Can Negotiate |
| Packaging Details: | Wooden Case, Waterproof, Anti-collision |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
Detailed Product Description
| Maximum Penetration（FE）: | 150mm/25mm | Tube Voltage: | 225kV |
|---|---|---|---|
| Focal Size: | 0.4mm/1.0mm | Size: | 3200mm*3873mm*3277mm（L*W*H） |
| Detection Range: | ɸ 120 Mm*120 Mm | Weight: | 8.5T |
| High Light: |
industrial x ray systems
industrial inspection systems |
||
Switch Epoxy Resin Material Industrial X Ray Machine 225KV Flaw Detector
It is widely applied to inspect all kind of casting,NDT for air bubble,porosity and unwanted foreign.The equipment is applicable objects for NDT of cylinder welding defects and body,sidewall,lap,Crown steel cord and steel belt of tyre slag inclusion,crack,loosen and other flaws in hubs,pressure vessel,refractory material,bullet,boilr welded pipe and screwy pipe.
1. Catch tool car can be completely out of the protective lead room, easy up and down lifting.
2. X-Ray tube can be extended into the detected parts, single / double check through the material everywhere.
3. Drive motor frequency control, unlimited speed control.
4. Lead door with anti-folder function and chain protection, protection equipment and staff.
5. Voltage regulator, isolation, filtering, grounding and other protective functions are complete.
6. Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis function (optional).
| Attribute | Respective Value |
| Maximum penetration(FE) | 150mm/25mm |
| Equipment weight | 8.5T |
| System Dimension | 3200mm *3873mm*3277mm |
| X-ray Tube | 225KV |
| Detection range | 1200*1200mm |
| Pixel Pitch | 139μm |
| Focal size | 0.4mm/1.0mm |
| Image Area | 215mm x 215mm |

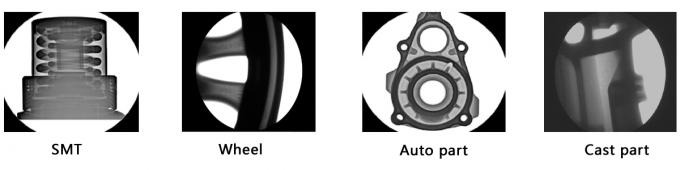

Inspection Images:
.jpg)
