HD Camera Unicomp X Ray 130kV For Inspecting PCBA Boards

Danh mục:

Unicomp

Từ khóa:

xray3dsửamáyxraycôngnghiệp , sửamáyxraycôngnghiệp , máykiểmtraxray , kiểmđịnhantoànphóngxạ , máyxraycôngnghiệp , chothuêmáyxray , muabánmáyxraycũmới , máyxraycũmới , xray3d , xrf , xrfcũmới , sửamáyđoxrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	Unicomp
Certification:	CE, FCC
Model Number:	AX9100

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Polywood case package data:166cm156cm195cm total weight:1900KG
Delivery Time:	45 days
Payment Terms:	T/T

Detailed Product Description

Function:	PCBA，BGA Inspection	Equipment:	Quality Check
High Light:	HD Camera Unicomp X Ray PCBA Boards Unicomp X Ray 130kV X Ray Scanning Machine

Function:

PCBA，BGA Inspection

Equipment:

Quality Check

High Light:

HD Camera Unicomp X Ray

PCBA Boards Unicomp X Ray

130kV X Ray Scanning Machine

Application

SMT, BGA, CSP, Flip Chip, LED Detection
Ceramics, other special industries.
Semiconductor, Packaging components, Battery Industry,
Aluminium Die-casting, Moulding Plastic.
Electronic components, Automotive parts, Photo-voltaic,

Features

Max. loading area φ570mm, max. inspection area 450mm*450mm, with 1600X Magnification
Tilt detection with 55° and rotation 360°operation together with 6 axis movement
130kV (Option 110KV) 7µm closed X-ray tube, high speed & Millions pixels high resolution FPD
Multi-function DXI image processing system, CNC programmable detection

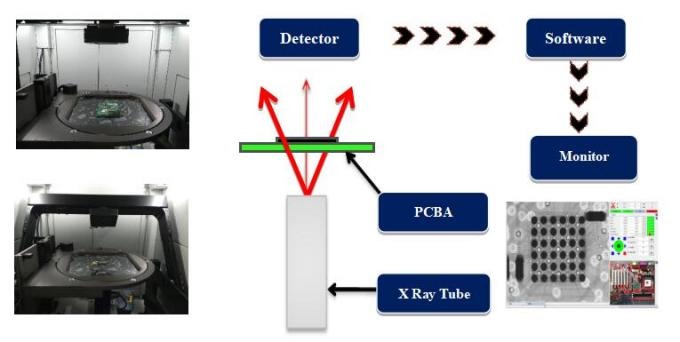

X-ray tube & detector automatic lifting and descending, with convenient target point positioning system

X-ray Images

Technical Specifications

Item	Description	Specifications
X-Ray Tube	Max. Voltages, Type	130kV (Option 110KV), Closed
	Power Consumption	40W(25W)
	Focal Spot Size	7 μm
	Magnification	1600X
Detector	Detector Type	FPD
	Resolution	101 LP/cm
	Effective Area	116.4mm ×145.7mm
System Computer	Operating System	Industrial PC, Win 7, i7 Processor
System Computer	Monitor	22” LCD
Software	User Interface	Unicomp Multi-function DXI image processing system
Working Platform	Max. Loading Area	φ570mm
	Max. Inspection Area	450mm×450mm
	Max. Loading Weight	10kg
	Movement Control	Joysticks, Mouse and Keypads
	Motion Range (Up and Down)	200mm
	Table Tilting Angle	55° Tilting and 360° Rotation
Navigation	Camera	HD Camera, Laser point
Axis	Manipulator	6-axis with X1/ X2 / Y / Z / T(55°) / R(360°)
Equipment Features	Power Supply	AC 110~220V (±10%) 50Hz, 2.0kW
	Outline Dimensions	1450(W)×1500(D)×1850(H)mm
	System Weight	1900 kg
Optional Accessories	None
Warranty	One year warranty , free replacement the parts due to original manufacturer's defect, but expect of man-made damages and force majeure
