Mô tả sản phẩm
| Place of Origin: | China |
|---|---|
| Brand Name: | UNICOMP |
| Certification: | CE, FDA |
| Model Number: | AX8500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | can negotiate |
| Packaging Details: | Wooden Case, Waterproof, Anti-collision |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300 sets per month |
Detailed Product Description
| Color: | Grey And Black | Name: | X-ray Inspection Machine |
|---|---|---|---|
| Application: | SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor | Tube Voltage: | 100KV |
| Industry: | Electronics Industry | Size: | 1370(W)×1300(D)×1700(H)mm |
| X-ray Leakage: | < 1uSv/h | Weight: | 1600kg |
| High Light: |
SMT BGA Electronics X Ray MachineElectronics X Ray Machine FPD1000X Magnification X Ray Machine |
||
Unicomp AX8500 X Ray with FPD Detector and 1000X Magnification to check Semiconductor components quality issue
Technical Parameters and Specifications
| System Summary | |
| Footprint | 1370(W)×1300(D)×1700(H)mm |
| Machine Weight | 1600 kg |
| Power Supply | AC 110~220V, 50/60Hz |
| Plywood Packing Size | 1750(W)×1500(D)×2000(H)mm |
| Packing Weight | 1800 kg |
| Power Consumption | 2.0 kW |
| X-Ray Tube | |
| Tube Type | Sealed |
| Max. Power | 25W |
| Voltage | 0~110kV (Adjustable) |
| Focus Spot Size | 5μm |
| Imaging System | |
| Detector | Flat Panel Detector (FPD) |
| Pixel Size | 85μm |
| Effective Detection Area | 130*130mm |
| Frame Rates | 20fps |
| Pixel Matrix | 1536*1536 |
| System Magnification | 1600X |
| Software | |
| Auto-measuring | BGA Soldering Voids Auto-measuring and Support Data/Graphic Output |
| Multiple Measuring Tools | Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc. |
| CNC Mode | CNC Programmable Inspection, Easy Operation and User Friendly |
| Real-time Display | Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc |
| Navigation | Convenient Target Point Positioning System |
| Motion Control System | |
| Movement Control | Joystick, Keypad & Mouse |
| Max. Loading Area/Weight | Ф570mm / 10kg |
| Max. Inspection Area | 450*450mm |
| Oblique Views | Max. 55° Filting (FPD) / 360° Rotation (Table) |
| Manipulator | 6-axis with X1 / X2 / Y / Z1 / T (55°) /R (360°) |
| Industrial PC | |
| Monitor | 22’’ FHD LCD Display |
| System OS | Windows 10 64bit |
| Hard disk | 1TB |
| RAM | 8GB |
| CPU model | Intel i7 Processor |
| Other Features | |
| Energy Saving | X-Ray Auto-off when it's out of work over than 5 minutes |
| Safety Operation | Electromagnetic Interlock and warning Light |
| Authority Management | Password Management |
| X-Ray Safety | <1μSv/h (Meets All International Standards) |
| * Specifications are subject to change without notice, All trademarks are the property of the system maker. | |

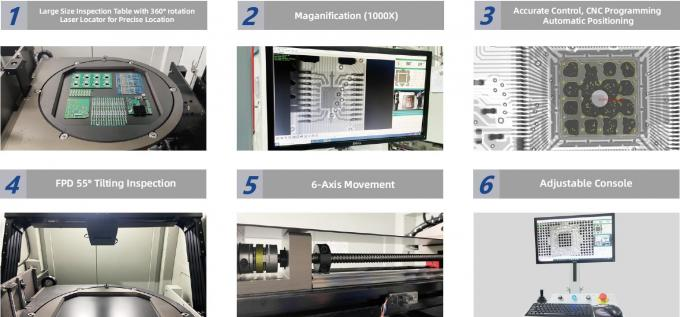

Functions and Features
.png)
Applications:
.png)
Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small
Metal Casting, Electronic Connector Module, Cables,Aerospace Components, Photovoltaic Industry, etc.

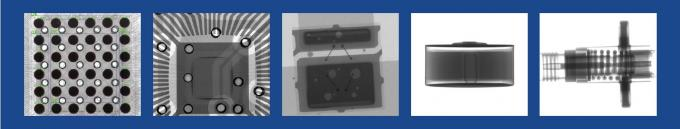

Inspection Images:
.png)
