Microfocus 130KV Close Tube X Ray PCB Inspection Machine For SMT BGA CSP LED PCBA

Danh mục:

Unicomp

Từ khóa:

xray 3d sửa máy x ray công nghiệp , sửa máy x ray công nghiệp , máy kiểm tra x ray , kiểm định an toàn phóng xạ , máy x ray công nghiệp , cho thuê máy x ray , mua bán máy x ray cũ mới , máy x ray cũ mới , xray 3d , x ray 3d , xrf , xrf cũ mới , sửa máy đo xrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	Unicomp
Certification:	CE, FDA
Model Number:	AX9100

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	300 sets per month

Detailed Product Description

Name:	X Ray Pcb Inspection Machine	Application:	SMT, EMS,BGA, Electronics, CSP , LED, Semiconductor
Tube Voltage:	130KV	Warranty:	1 Year
Industry:	Electronics Industry	Size:	1350(L)x1250(W)x1700(H)mm
X-ray Leakage:	< 1uSv/h	Weight:	1900kg
Power Consumption:	1.6kW
High Light:	1.6kW x ray PCB inspection machine CSP x ray PCB inspection machine Clsoe Tube smt x ray machine

Microfocus 130KV close tube X-ray inspection machine for SMT BGA, CSP, LED, PCBA soldering quality inspection

Features of Unicomp AX9100:
● 90-130KV 7μm X-Ray tube.
● High speed & Millions pixels high resolution FPD.
● 1000X magnification, high-definition real-time image.
● One-button operation with 2.5D image display.
● Off-line programming function, navigation mode detection.
● 7 axis linkage, 70 degree tilt detection.

Applications of Unicomp AX9100:
● SMT, BGA, CSP, Flip Chip, LED Detection.
● Semiconductor, Packaging components, Battery Industry.
● Electronic components, Auto parts, Photovoltaic Industry.
● Aluminum Die-casting, Moulding Plastic.
● Ceramics, Other Special Industries.

Item	Definition	Specs
System Parameters	Size	1350(L)x1250(W)x1700(H)mm
	Weight	1900kg
	Power	220AC/50Hz
	Power Consumption	1.6kW
X-ray Tube	Type	Closed
	Max.Voltage	130kV
	Max.Power	40W
	Spot Size	7μm
X-ray System	Intensifier	FPD
	Monitor	22 ‘’LCD
	System Magnification	1600 X
Detection Region	Max.Loading Size	Φ570mm
Detection Region	Max.Inspection Area	450mm x 450mm
X-ray Leakage		<1μSv/h

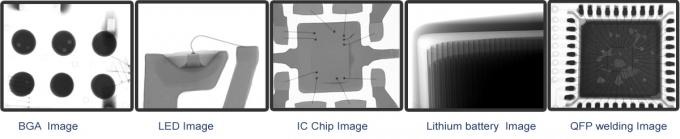

Test Images of Unicomp AX9100:

Our Services
Help customer analyze product project and provide detection solution.
Freely sample detection test.
Provide professional detection solution.
Skilled jig design services.
Provide shipping/delivery information checking service.
One year guarantee, all life maintain promise.
24 hours feedback speed by email of others.

FAQ:
1. How about the package? Is it safe during the delivery?
All X-ray inspection machine is packed by standard strong wooden carton.It is safe when shipping.

2. Do you provide the Warranty? How about the after sales service?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.

3. If we come to your factory, if you will provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
