100kV PCBA X Ray Inspection System Unicomp Electronics For BGA Void / Soldering

Danh mục:

Unicomp

Từ khóa:

xray 3d sửa máy x ray công nghiệp , sửa máy x ray công nghiệp , máy kiểm tra x ray , kiểm định an toàn phóng xạ , máy x ray công nghiệp , cho thuê máy x ray , mua bán máy x ray cũ mới , máy x ray cũ mới , xray 3d , x ray 3d , xrf , xrf cũ mới , sửa máy đo xrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	Unicomp
Certification:	CE, FCC, FDA
Model Number:	AX8200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	On request
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days after order confirmation
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	100 sets per month

Detailed Product Description

X-Ray Voltage:	100kV	Detector:	High Resolution Intensifier
Focal Spot:	5μm	Resolution:	77/110 LP/cm
High Light:	100kV PCBA X Ray Inspection System 5μm BGA X Ray Inspection System Unicomp Electronics X Ray Equipment

X-Ray Voltage:

100kV

Detector:

High Resolution Intensifier

Focal Spot:

5μm

Resolution:

77/110 LP/cm

High Light:

100kV PCBA X Ray Inspection System

5μm BGA X Ray Inspection System

Unicomp Electronics X Ray Equipment

Unicomp Electronics High Resolution PCBA X-Ray Efficient Inspection for BGA Void, Soldering Quality

Specifications:

Item	Description	Specifications
X-Ray Tube	Max. Voltages, Type	90kV, Closed (100kV Optional)
	Power Consumption	8W
	Focal Spot Size	5 μm
	Motion range (Up and Down)	150mm
	Magnification	600X
Detector	Intensifier	4”/2” (FPD Optional)
	Resolution	77/110 LP/cm
	Camera	200 Mega Pixel CCD
	Motion range (Up and Down)	290mm
System	Operating System	Industrial PC, Win 7, i7 Processor
System	Monitor	22” LCD
Software	User Interface	Unicomp Multi-function DXI image processing system
Working Platform	Max. Loading Area	510mm×420mm
	Max. Inspection Area	435mm×385mm
	Max. Loading Weight	10kg
	Movement Control	Joysticks, Mouse and Keypads
	Table Tilting Angle	±60°
Navigation	Camera	HD Camera, Laser point
Axis	Manipulator	5-axis with X / Y / Z1 / Z2 / T
Equipment Features	Power Supply	AC 110~220V (±10%) 50Hz, 1.0kW
	Outline Dimensions	1080(W)×1180(D)×1730(H)mm
	System Weight	1150 kg
Optional Accessories	1.Barcode Scanner; 2.Dimension Measurement Gauge
Warranty	One year warranty , free replacement the parts due to original manufacturer's defect, but expect of man-made damages and force majeure

Feature:

• 90kV 5µm closed X-ray tube, 4/2”image intensifier with 2 mega pixels CCD camera

• Multi-function workstation with±60°rotation and X-Y multi-axis movement

• X-ray tube & detector automatic lifting and descending, with convenient target point positioning system

• Multi-function DXI image processing system, programmable detection

• Max. loading area 510mm*420mm, max. inspection area 435*385mm, with 600X Magnification

Application:

BGA , CSP , Flip Chip, LED , Fuse, Diode, PCB

Semiconductor , Battery Industry , Small Metal Casting, Electronic Connector Module

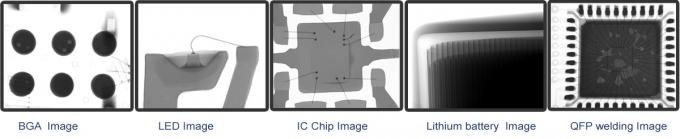

Inspection image:

X-Ray Safety: All X-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA - CDRH standard for cabinet x-ray systems states that radiation emission will not exceed. 5millirem a /hr.2"from any external surface. Our machines (X-Ray Leakage <1μSv/h ) are typically 5-10 times less emission than the international standards,
