Mô tả sản phẩm

Dimensions:	2270mm[L]×980mm[W]×1350mm[H]	Tunnel Dimensions:	650×500mm
Resolution:	40AWG (ф=0.0787mm Metal Wire)	Penetration:	32mm Steel Equivalence
Conveyor Speed:	0.22 -0.67 M/s, Adjustable Speed	Max Load Weight:	160KG
Max Voltage:	160KV
High Light:	160KV X Ray Baggage Scanner, 32mm Steel X Ray Baggage Scanner, 40AWG Security X Ray Machine

Unicomp Security X-Ray Luggage Screening UNX6550

Today, Unicomp Technology has three R&D /Manufacturing sites exceeding 25,000m2 respectively located at Wuxi/Jiangsu Province, Shenzhen/Guangdong Province, and Chongqing. Our sales and service centers are located all across China including Beijing, Shenyang, Tianjin, Xi'an, Qingdao, Wuhan, Chengdu, Ningbo , Xiamen and etc. The company has also penetrated into the international market with sales and service support in USA, Mexico, Europe, UK, Russia, Brazil, Ecuador, Australia , Middle East and Southeast Asia. This international connection has helped Unicomp to be recognized as a Global Force in today’s X-ray industry. Today “UNICOMP” is a hallmark brand in the industry both at home and abroad.

Specifications:

System Parameters	Dimensions	2270mm(L)×980mm(W)×1350mm(H)
	Tunnel Size	650mm(W)×500mm(H)
	Weight	750kg
	Conveyor Height	675±10mm
	Inspection Speed	0.22 - 0.67m/s, adjustable
	Max.Load Weight	160Kg
	Resolution	40AWG ( φ= 0.0787 mm metal wire )
	Penetration	32mm steel
	Radiation Safety	Meets film safety ISO 1600
	X-ray Dose Rate	<0.5μGy/h (5cm away from the housing)
X-ray Generator	Anode Voltage	140Kv-160kV( Adjustable)
	Cooling Cycle	Oil Cooling 100%
	Single Inspection Dose	<1.2μGy
Imaging System	X-ray Detector	Photodiode
	Gray Level	4096
	Monitor	19’’
Image Processing System	Image Enhancement	Black and white Inverse High-energy penetration Low-energy penetration Super-enhancement Elimination of organic or inorganic substances Variable absorption rate Pseudo-color *Arbitrary selection ( user selected ROI zoom ) ( 64X image magnification/no loss of resolution )

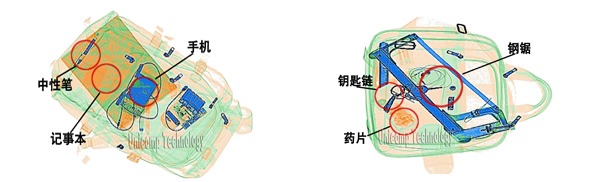

	Recognition	Orange for organic matter, blue for inorganic, green for metal and compound
	Image Playback	50 inspected images could be replayed
	Storage Capacity	No less than 100 thousand pieces of image
Additional Features	Standard Functions	Date/time display Baggage counter User management System operation clock X-ray on clock POST Image storage & retrieval Diagnosis & maintenance Dual-scan Image recognition trainging *Cloud data storage and analysis
Additional Features	Optional Functions	High density area alarm Explosives and drugs auxiliary examination *Dangerous goods image insertion
Installation Requirements	Operation/Storage Temperature	0~40℃,-5~50℃
	Humidity	10%~90%(No condensation)
	Power Supply	220VAC±5% 50Hz/60Hz
