Máy quét X-Ray an ninh UNICOMP UNX6040D

Danh mục:

Unicomp

Từ khóa:

xray 3d sửa máy x ray công nghiệp , sửa máy x ray công nghiệp , máy kiểm tra x ray , kiểm định an toàn phóng xạ , máy x ray công nghiệp , cho thuê máy x ray , mua bán máy x ray cũ mới , máy x ray cũ mới , xray 3d , x ray 3d , xrf , xrf cũ mới , sửa máy đo xrf , an ninh , quét

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Tunnel Size:	600mm(W)x400mm(H)	Weight:	850kg
Anode Voltage:	140Kv-160kV( Adjustable)	Power Consumption:	1kW
Power Supply:	220VAC±5%·50Hz/60Hz	Humidity:	10%~90%(Non-Condensing)
High Light:	x ray scanning machine, security x ray machine

Dual Viewer X Ray Security Scanner UNX6040D Multi-energy display Automatically detect

Unicomp Technology was incorporated in 2002. It is a national level high-tech enterprise which involved in the R&D and manufacturing of X-ray technology and intelligent detection equipment. Unicomp has become the leading enterprise in domestic X-ray industry. This technology is widely applied in Public Security, Lithium battery, EMS, IC, Semiconductor, Solar Photovoltaic, LED, Connector, Automotive Parts, Wheel, Tires, Pressure vessel industry etc.

Unicomp Technology upholds its Integrity, Deploitation and Excellence in the business, is committed to meeting the highest level of International Standards and promises to be a responsive partner with all of our customers. This philosophy has enabled Unicomp to generated a strong Global customer base of many International Renowned companies including Flextronics, Foxconn, Samsung, Philips, GM, Bosch, Emerson, Delphi,ABB, BYD, ZTE, Panasonic, Sony, Boston Power, BAK, Sunwoda, Guoxuan, Fenghua, Coslight, ManYue, ,ITM, SISP, Taikai, Heli, Exploitpr, Qiya,Timeng,YUNDA Express,UC Express and YTO Express just to name a few.

Product Description:

UNX series X-ray baggage scanner is a multi-energy type X-ray inspection series manufactured by Unicomp technology. Especially for the safety check of suitcases, backpacks, parcels and express goods, can be widely used in traffic logistics, civil aviation, customs ports, conference centers, hotels, cultural and sports and other large-scale activities, express logistics. Product design combined with industry characteristics, integration of advanced industrial design concept, the overall shape simple and beautiful.

Features:

1. Detection speed 0.22m / s;

2. The maximum penetration: 34mm thick steel plate;

3. Could detect the largest object size up to 600mm × 400mm;

4. Remote technical service support;

5. Very low radiation dose leakage, close to natural costs, to meet international and domestic health and safety standards;

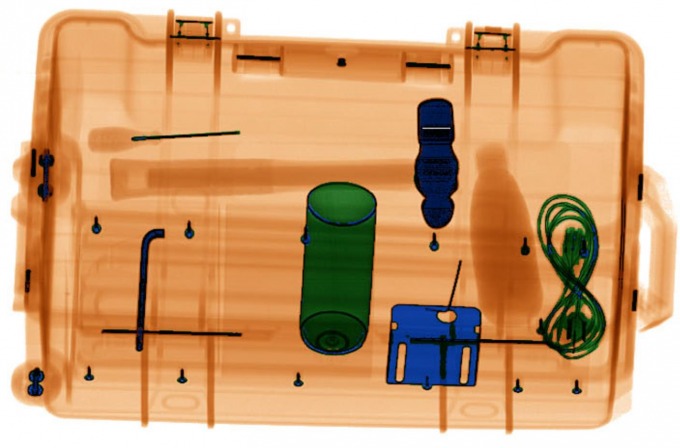

6. Professional material recognition ability: orange represents organic matter, blue represents inorganic matter, green represents metal and mixture;

7. Explosive and drug-assisted detection functions, according to the composition of explosives and drug substances to automatically detect and alarm.

System Parameters
Model	UNX6040D
Dimensions	2370mm(L)x1220mm(W)x1325mm(H)
Tunnel Size	600mm(W)x400mm(H)
Weight	850kg
Inspection Speed	0.22m/s(Optional 0.4m/s)
Conveyor Height	710±20mm
Max.Load Weight	150kg(Evenly distributed load)
Beam Direction	Vertical	Horizontal
Wire Resolution	40AWG (Φ=0.0787mm metal wire)	40AWG (Φ=0.0787mm metal wire)
Penetration	40mm Steel Typical 32mm Steel Standard
Recognition	Orange for organic, blue for inorganic, green for metal and mixtures
Single Dose Rate	＜3μGy,Meets film safety ISO 1600
Radiation Leakage	＜0.5μGy/h(5cm away from the housing) compliant with national and the international radiation health standards
X-ray Generator
Anode Voltage	140kV~160kV(Adjustable)
Cooling	Sealed Oil Cooling & 100%
Imaging System
X-ray Detector	Multi energy L - shaped photodiode array detector
Gray Level	4096
Monitor	19’’
Image Processing System
Image Processing	Color imaging Multi-energy display High-energy penetration Low-energy penetration organic & inorganic excluding Image edge enhancement Super-enhancement Bright / dark enhancement replay 50 inspected images Inverse Image magnification Image classification search
Image Store System	Stores up to 100,000 images(Automatic storage)
Self- check Function	Automatically detect the working status of each sub-module after power-on
Additional Features
One-key Shutdown	Automatically shutdown by one button operation; reducing equipment failure rate
Environmental Design	Plating protective film on lead curtain to protect human heath and extend equipment’ lifespan
Fault Self-diagnosis Function	Automatically diagnose fault, feedback promptly to help maintenance in time
Drug &Explosive Auxiliary Detection	Supporting detect some typical drug, explosives and other dangerous goods, Alert with red for high density area
Industry Cloud Platform	1.Detection data stored in industry cloud platform, large data classification, upload data to cloud server in real time, terminal trace-ability, Picture push etc; graphics data never lost, prevent data loss or site damage ;
	2.Provide remote mobile monitoring and management system, equipment positioning information and running status upload to management system in real time, check by APP or website; checking package detection and equipment operation situation in real time
System Function	Date and time display Display working status Image miniature / magnified Baggage counter Power-on self-diagnostic function Emergency stop Image storage and retrieval Image markup Image format conversion Image printing Bidirectional scanning detection Image recognition training Equipped with a network interface Network monitoring System work timing Software upgrade
Optional Function	1.High-speed marking function; Quickly and accurately marking the leakage scanning and typical dangerous packages
	2.Auto-weighing packages; Accurately measuring weight of packages and preserving data
	3.Volume calculation; Accurately measure the volume of packages with domestic advanced measurement system and preserving data
	4.Automatic scanning parcel’s bar code; Intelligent and automatic capture and identify parcel’s tracking number with sensor which detect the flow of parcels, and intelligent industrial camera which reading code and snapshot
Installation Data
Operation/Storage Temperature	0~40℃/-5~50℃
Humidity	10%~90%(Non-Condensing)
Power Supply	220VAC±5%·50Hz/60Hz
Power Consumption	1kW
