Mô tả sản phẩm
| Tunnel Size: | 500mm(W)×300mm(H) | Weight: | 300kg |
|---|---|---|---|
| Anode Voltage: | 100Kv | Dimension: | 1600mm(L)×810mm(W)×1120mm(H) |
| Resolution: | 40AWG (Typical) , 34(Standard) | Inspection Speed: | 0.22m/s |
| High Light: |
x ray scanning machine, security x ray machine |
||
Economy X-Ray Parcel Screening Hotel Security Inspection Equipment UNX5030E
The UNX Series X-ray security detection machine release is a dynamic project associated with our Unicomp Technology Research and Development Manufacturing Division. Our full range of security machines are designed to address multiple safety requirements including internal detection of luggage, backpacks and express courier packages. The UNX Series machines are also effective for port logistics transportation, civil aviation, customs control, conference centers, hotels, large cultural and sports activities, plus express logistics. All of our machine platforms include state of the art industrial designs, high tech appearance and the most advanced Cloud traceability software in the industry.
Emission: Extremely low radiation dose adhering to all International Safety Standards.
Environment: New advanced lead curtain pressure membrane technology effectively eliminating secondary lead (Pb) pollution.
Power: Penetration equivalence of up to a 42mm steel plate.
Operation: Intuitive operator interface and media interface for quick learning and optimization of the machine.
Software/Imaging: Robust software platform with intuitive control interface. Clean and crisp image presentation meeting all International Standards.
Traceability: Cutting edge Cloud traceability functions from initial product scan to final customer acceptance ensuring full safety throughout the process.
Support: A full suite of customer support including; remote technical support, direct access to the Cloud, and real time monitoring of machine technical functions/operation.
| System Parameters | Dimensions | 1600mm(L)×810mm(W)×1040mm(H) |
| Tunnel Size | 500mm(W)×300mm(H) | |
| Weight | 300kg | |
| Conveyor Height | 675±10mm | |
| Inspection Speed | 0.22m/s | |
| Max.Load Weight | 100Kg(Even distribution) | |
| Resolution | 40AWG (Typical) , 34(Standard) | |
| Penetration | 28mm (Typical),25mm (Standard) | |
| Radiation Safety | Meets film safety ISO 1600 | |
| X-ray Dose Rate | <0.4μGy/h (5cm away from the housing) | |
| X-ray Generator | Anode Voltage | 100Kv |
| Cooling Cycle | Oil Cooling 100% | |
| Single Inspection Dose | <1.0μGy | |
| Imaging System | X-ray Detector | Photodiode |
| Gray Level | 4096 | |
| Monitor | 17’’ | |
| Image Processing System | Image Enhancement |
*Black and white *Inverse *High-energy penetration *Low-energy penetration *Super-enhancement *Elimination of organic or inorganic substances *Variable absorption rate *Pseudo-color *Arbitrary selection ( user selected ROI zoom ) ( 64X image magnification/no loss of resolution ) |
| Recognition | Orange for organic matter, blue for inorganic, green for metal and compound | |
| Image Playback | 50 inspected images could be replayed | |
| Storage Capacity | No less than 100 thousand pieces of image | |
| Additional Features | Standard Functions | *Date/time display *Baggage counter *User management *System operation clock *X-ray on clock *POST *Image storage & retrieval *Diagnosis & maintenance *Dual-scan *Image recognition trainging *Cloud data storage and analysis |
| Optional Functions | *High density area alarm *Explosives and drugs auxiliary examination *Dangerous goods image insertion | |
| Installation Requirements | Operation/Storage Temperature | 0~40℃,-5~50℃ |
| Humidity | 10%~90%(No condensation) | |
| Power Supply | 220VAC±5% 50Hz/60Hz |

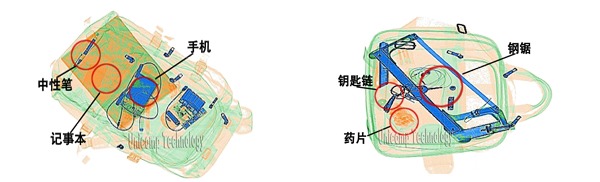

Inspection Images:
.jpg)
