Mô tả sản phẩm
| Place of Origin: | China |
|---|---|
| Brand Name: | UNICOMP |
| Certification: | CE, FDA |
| Model Number: | AX9100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | can negotiate |
| Packaging Details: | Wooden Case, Waterproof, Anti-collision |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300 sets per month |
Detailed Product Description
| Name: | X Ray Inspection Machine | Tube Voltage: | 130KV |
|---|---|---|---|
| Industry: | Electronics Industry | X-ray Leakage: | < 1uSv/h |
| Max.Voltage: | 130kV | Power Consumption: | 1.6kW |
| High Light: |
pcb x ray inspectionpcb inspection equipment |
||
Electronics PCB parts X ray Machine with a high-resolution imaging chain
X-ray detection technology for the SMT production testing means brought new changes, it can be said that it is the desire to further improve the level of production technology to improve the quality of production, and will soon find the circuit assembly failure as a breakthrough. It's the best selection for the manufacturer.
| Item | Definition | Specs |
| System Parameters | Size | 1350(L)x1250(W)x1700(H)mm |
| Weight | 1900kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 1.6kW | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 130kV | |
| Max.Power | 40W | |
| Spot Size | 7μm | |
| X-ray System | Intensifier | FPD |
| Monitor | 22 ‘’LCD | |
| System Magnification | 1600 X | |
| Detection Region | Max.Loading Size | Φ570mm |
| Max.Inspection Area | 450mm x 450mm | |
| X-ray Leakage | <1μSv/h | |
Features:
● 90-130KV 7μm X-Ray tube.
● High speed & Millions pixels high resolution FPD.
● 1000X magnification, high-definition real-time image.
● 7 axis linkage, 70 degree tilt detection.
● One-button operation with 2.5D image display.
● Off-line programming function, navigation mode detection.
Applications:
● SMT, BGA, CSP, Flip Chip, LED Detection.
● Semiconductor, Packaging components, Battery Industry.
● Electronic components, Auto parts, Photovoltaic Industry.
● Aluminum Die-casting, Moulding Plastic.
● Ceramics, Other Special Industries.

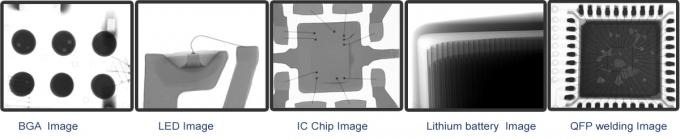

Test Images:
(4).jpg)
