Electronic PCB X Ray Machine With Integrated Generator , High Resolution Imaging Chain

Danh mục:

Unicomp

Từ khóa:

xray 3d sửa máy x ray công nghiệp , sửa máy x ray công nghiệp , máy kiểm tra x ray , kiểm định an toàn phóng xạ , máy x ray công nghiệp , cho thuê máy x ray , mua bán máy x ray cũ mới , máy x ray cũ mới , xray 3d , x ray 3d , xrf , xrf cũ mới , sửa máy đo xrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	AX8500

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	300 sets per month

Detailed Product Description

Name:	PCB X Ray Machine	Application:	SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Tube Type:	Closed	Industry:	Electronics Industry
Size:	1250(L)x1300(W)x1900(H)mm	X-ray Leakage:	< 1uSv/h
High Light:	pcb x ray inspection pcb inspection equipment

PCB X Ray Machine with integrated generator, and a high-resolution imaging chain

Item	Definition	Specs
Motion Control System	Motion Control Mode	Mouse&Joystick&Keyboard
	Max.Load Dimension	500x500mm
	Max.Detection Dimension	350x450mm
	Tilt Detection Angle	60°
X-Ray System	Tube Type	Closed
	Voltage/Current	100kv/200μA
	Focal Spot Size	5μm
	FPD Detector	FPD
Physical & Image Processing Parameters	Length x Width x Height	1250 x 1300 x 1900 mm
	Weight	1500 kg
	Power	2kW
	System Magnification	500 x
	Leakage Dose	<1μSv/h

X-ray inspection system has been widely applied to Circuit Board Inspection,Semi-Conductor Inspection and Other Applications. (Offline X - Ray series) widely used in offline detection, defect analysis, used for PCBA, packaging, ceramics, plastics, LED, and so on.

Major applications:

PCBA BGA/IC LED Aliminum die casting Battery connector inspecting

1. Semiconductor package
2. Electronic connector module.
3. Original Package
4. Aerospace components
5. Medical appliances
6. Automation components

OUR SERVICE

1. Your inquiry will be replied in 12 hours.
2. Original Manufacture to customers, with competitive price.
3. We provide one year warranty, free training and whole life technology support.
4. We can arrange the shipment by air, DHL,Fedex, UPS, and by Sea,etc for you, and will give you the tracking NO. after shipment.
5. Well-trained and Professional after-sales service team to support you.
6. Manual will package with machine . It will show you how to use machine step by step.
7. Items are only shipped after payment is received.

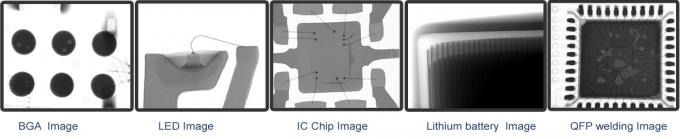

Inspection Images:
